Description
General part information

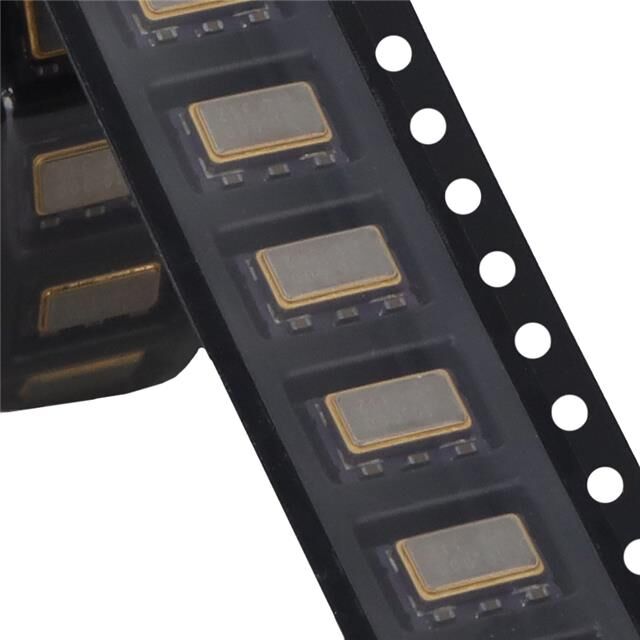

TTJTMLSAYF-20.000000
20 MHz TCXO Clipped Sine Wave Oscillator 2.5V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TTJTMLSAYF-20.000000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 5 mA |
| Frequency | 20 MHz |
| Frequency Stability | 100 ppb |
| Height - Seated (Max) | 0.083 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | TCXO |
| Voltage - Supply | 2.5 V |
