9001-18481C00L1A
ActiveOupiin
DIN41612, FEMALE, HALF R TYPE, 4
Deep-Dive with AI
Search across all available documentation for this part.
9001-18481C00L1A
ActiveOupiin
DIN41612, FEMALE, HALF R TYPE, 4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001-18481C00L1A |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Current Rating (Amps) | 2 A |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | R/2 (1/2 R) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.29 | |
Description
General part information
9001-18481C00L1A

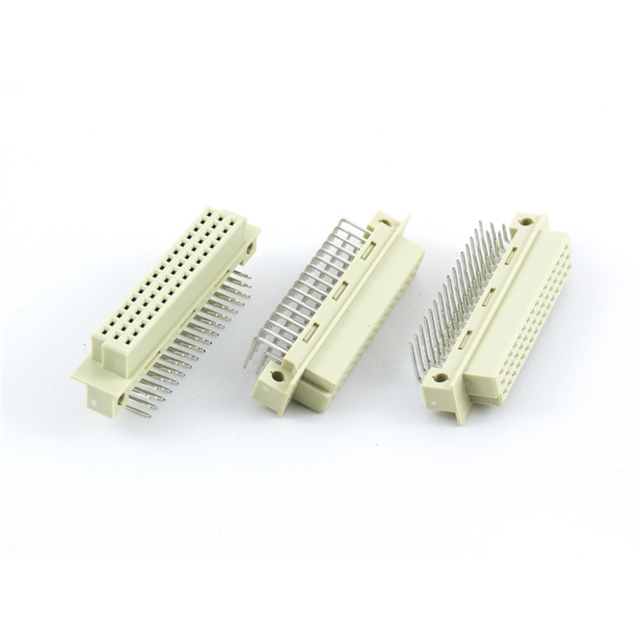

48 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
