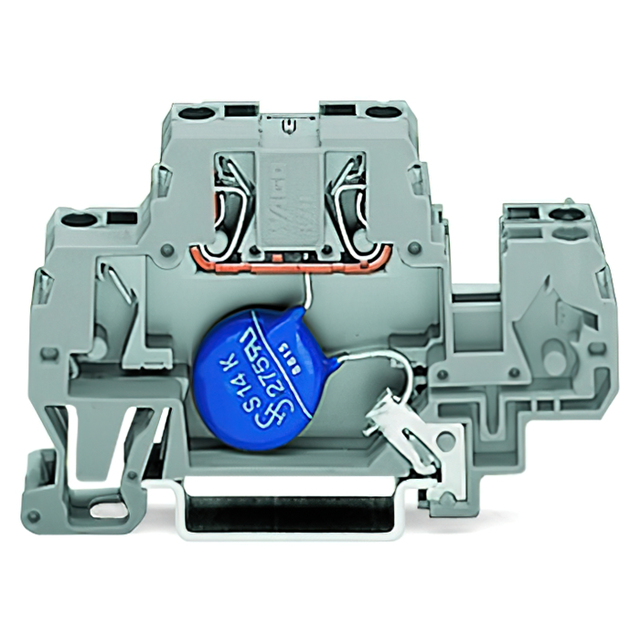

COMPONENT TERMINAL BLOCK; DOUBLE
870-523/281-586
ActiveWAGO Corporation
COMPONENT TERMINAL BLOCK; DOUBLE
Description
General part information
870-523/281-586
Terminal Block Connector 2 Position Feed Through Gray 14-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 870-523/281-586 |
|---|---|
| Color | Gray |
| Current - UL | 20 A |
| Features | Varistor |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length (Max) | 7 mm |
| Stripping Length (Min) | 6 mm |
| Terminal Width | 10 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - UL | 24 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
