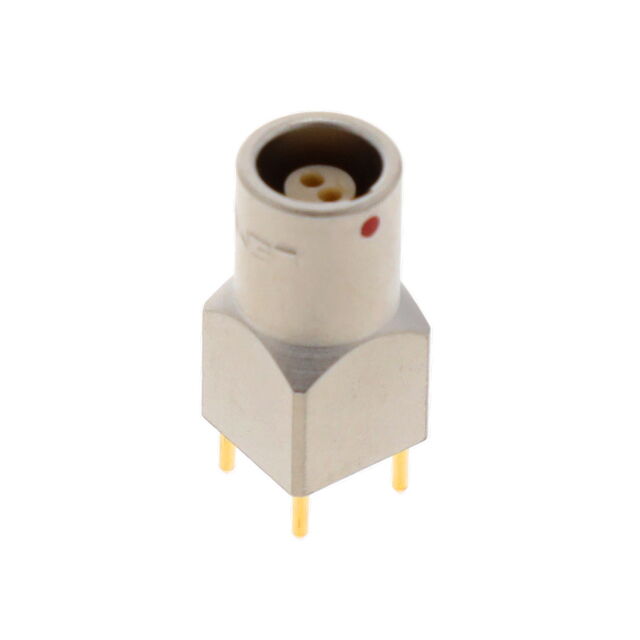

EZG.00.302.NLN

Active

LEMO

CONN RCPT FMALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZG.00.302.NLN	EZG.00.302 Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Nickel	Chrome, Nickel
Shell Material	Brass	Brass
Shell Size - Insert	302	302
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 2POS GOLD SOLDER

Part	Mounting Type	Number of Positions	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Shell Material	Contact Material	Shell Size - Insert	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Connector Type	Shell Finish	Shielding	Primary Material	Contact Finish - Mating	Insert Material	Fastening Type	Material Flammability Rating	Orientation
LEMO EZG.00.302.CLN	Through Hole	2	5 A	-55 °C	250 °C	Board Guide	Silver	Brass	Bronze	302	Solder	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Chrome	Shielded	Metal	Gold	Polyetheretherketone (PEEK)	Push-Pull	UL94 V-0	G
LEMO EZG.00.302.NLN	Through Hole	2	5 A	-55 °C	250 °C	Board Guide	Silver	Brass	Bronze	302	Solder	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Nickel	Shielded	Metal	Gold	Polyetheretherketone (PEEK)	Push-Pull	UL94 V-0	G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder
