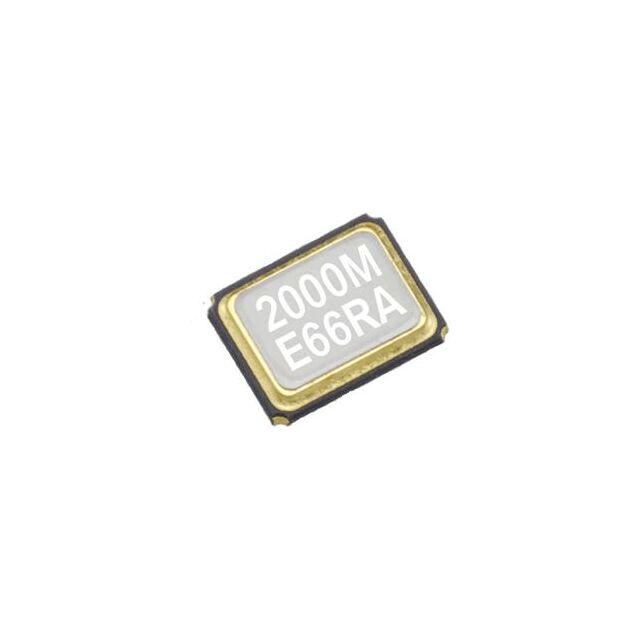

FA-238V 12.0000MA20Y-C5

Active

EPSON

FA-238V 12.0000MA20Y-C5: SMD XTL

Deep-Dive with AI

DocumentsProduct Configuration Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.59

Description

General part information

FA-238V Series

12 MHz ±20ppm Crystal 100 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Product Configuration Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA-238V 12.0000MA20Y-C5	FA-238V Series

ESR (Equivalent Series Resistance)	100 Ohms	80 - 100 Ohms
Frequency	12 MHz	12 - 13.21 MHz
Frequency Stability	20 ppm	20 - 30 ppm
Frequency Tolerance	20 ppm	20 - 50 ppm
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Load Capacitance	18 pF	7 - 20 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	2.5 mm	2.5 mm
Size / Dimension [y]	0.098 in	0.098 in
Supplier Device Package	4-SMD (3.2x2.5)	4-SMD (3.2x2.5)
Type	MHz Crystal	MHz Crystal

FA-238V Series

FA-238V 12.0000MA30X-K0: XTL MHZ

Part	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Mode	Package / Case	Frequency Tolerance	Frequency	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Frequency Stability	Load Capacitance
EPSON FA-238V 12.0000MA30X-K0	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead	30 ppm	12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C
EPSON FA-238V 12.0000MB30X-C	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead	30 ppm	12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C
EPSON FA-238V 12.0000MA30X-G	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead	30 ppm	12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C	4-SMD (3.2x2.5)	30 ppm	20 pF
EPSON FA-238V 12.00M-C0NNNNGA0RGB	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead		12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C
EPSON FA-238V 12.00M-N0TTYYGA0RG5	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead	25 ppm	12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C	4-SMD (3.2x2.5)	30 ppm	20 pF
EPSON FA-238V 12.0000MF23X-R5	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead		12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C
EPSON FA-238V 12.0000MA20Y-C5	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead	20 ppm	12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C	4-SMD (3.2x2.5)	20 ppm	18 pF
EPSON FA-238V 12.0000MA30X-G5	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead	30 ppm	12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C
EPSON FA-238V 12.0000MA30V-K0	100 Ohms	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead	30 ppm	12 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C
EPSON FA-238V 13.21M-70FFNNF80RG5	80 Ohm	0.7 mm	0.028 in	Fundamental	4-SMD, No Lead		13.21 MHz	MHz Crystal	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C			7 pF
