BT840X
ActiveFanstel Corp.

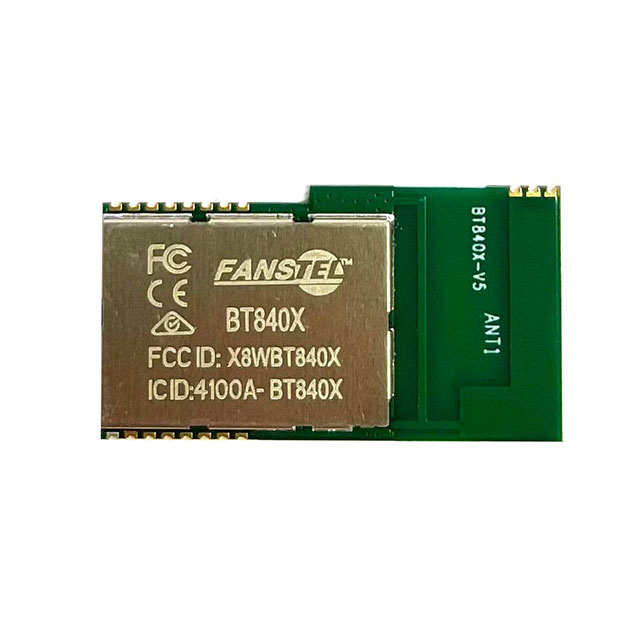

BT+ZIGBEE MODULE 16-PIN SMD MODULE T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT840X
ActiveFanstel Corp.
BT+ZIGBEE MODULE 16-PIN SMD MODULE T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BT840X | BT840 Series |
|---|---|---|
| Antenna Type | PCB Trace | Antenna Not Included, U.FL, Integrated, Trace, PCB Trace |
| Data Rate | 2 Mbps | 2 - 12 Mbps |
| For Use With/Related Products | - | BT840F, BT840E |
| Frequency | 2.4 GHz | 2.4 GHz |
| Memory Size | 1 MB, 256 kB | 1 - 256 MB |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 16-SMD Module | 16-SMD Module |
| Power - Output | 21 dBm | 8 - 21 dBm |
| Protocol | Thread, Zigbee, Bluetooth v5.0 | Zigbee®, Thread, Bluetooth v5.0, Zigbee |
| RF Family/Standard | Bluetooth, 802.15.4 | Bluetooth, 802.15.4 |
| Serial Interfaces | UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S | USB, SPI, UART, ADC, GPIO, PWM, I2C, I2S |
| Supplied Contents | - | Board(s) |
| Type | - | Transceiver, Bluetooth® 5.x (BLE) |
| Utilized IC / Part | nRF52840-QIAA | nRF52840, nRF52840-QIAA |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 V |
BT840 Series
EVALUATION BOARD FOR BT840F BLUE
| Part | Supplied Contents | Frequency | For Use With/Related Products | Type | Data Rate | Package / Case | Serial Interfaces | Antenna Type | Operating Temperature [Max] | Operating Temperature [Min] | RF Family/Standard | Voltage - Supply [Max] | Voltage - Supply [Min] | Power - Output | Protocol | Memory Size | Mounting Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fanstel Corp. EV-BT840F | Board(s) | 2.4 GHz | BT840F | Bluetooth® 5.x (BLE), Transceiver | ||||||||||||||
Fanstel Corp. EV-BT840 | Board(s) | 2.4 GHz | Bluetooth® 5.x (BLE), Transceiver | |||||||||||||||
Fanstel Corp. EV-BT840E | Board(s) | 2.4 GHz | BT840E | Bluetooth® 5.x (BLE), Transceiver | ||||||||||||||
Fanstel Corp. BT840E | 2.4 GHz | 12 Mbps | 16-SMD Module | SPI, USB | Antenna Not Included, U.FL | 85 °C | -40 °C | 802.15.4, Bluetooth | 5.5 V | 1.7 V | 8 dBm | Bluetooth v5.0, Thread, Zigbee® | 1 MB, 256 kB | Surface Mount | nRF52840 | |||
Fanstel Corp. BT840F | 2.4 GHz | 12 Mbps | 16-SMD Module | SPI, USB | Integrated, Trace | 85 °C | -40 °C | 802.15.4, Bluetooth | 5.5 V | 1.7 V | 8 dBm | Bluetooth v5.0, Thread, Zigbee® | 1 MB, 256 kB | Surface Mount | nRF52840 | |||
Fanstel Corp. BT840XE | 2.4 GHz | 2 Mbps | 16-SMD Module | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | Antenna Not Included, U.FL | 85 °C | -40 °C | 802.15.4, Bluetooth | 5.5 V | 1.7 V | 21 dBm | Bluetooth v5.0, Thread, Zigbee® | 1 MB, 256 kB | Surface Mount | nRF52840-QIAA | |||
Fanstel Corp. BT840X | 2.4 GHz | 2 Mbps | 16-SMD Module | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | PCB Trace | 85 °C | -40 °C | 802.15.4, Bluetooth | 5.5 V | 1.7 V | 21 dBm | Bluetooth v5.0, Thread, Zigbee | 1 MB, 256 kB | Surface Mount | nRF52840-QIAA |
