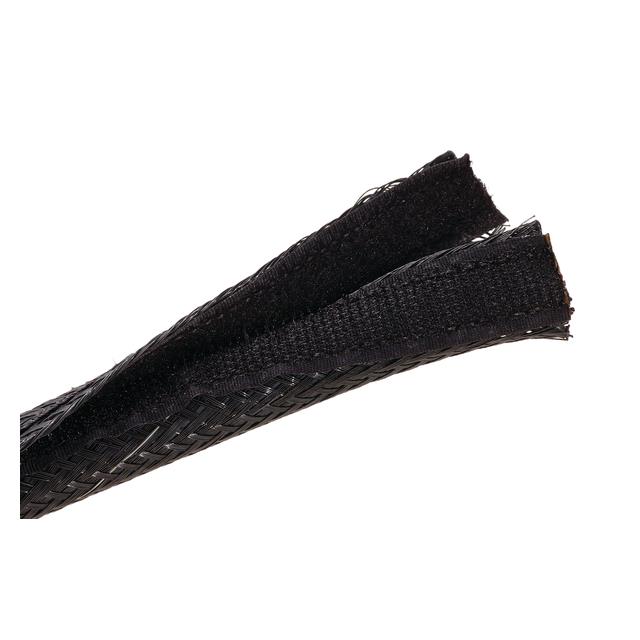

Specification	170-03150

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Outside, Non-Expanded	1.25 in
Features	Hook and Loop Closure Strip
Length	100 ft
Material	Halogen Free, Polyethylene Terephthalate (PET)
Material Flammability Rating	UL94 V-0
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.025 in

170-03 Series

Spiral Wraps, Sleeves, Tubing & Conduit BSPFR348 FRPET BRDSLV GRY 3/4

...

Part	Abrasion Protection	Operating Temperature (Min)	Operating Temperature (Max)	Type	Diameter - Inside, Expanded	Features	Color	Type Attributes	Material	Diameter - Outside, Non-Expanded	Heat Protection	Diameter - Inside, Non-Expanded	Length	Material Flammability Rating	Tool Type	For Use With/Related Products	Liquid Protection	Wall Thickness	Environment Protection
HELLERMANNTYTON 170-03117	Abrasion Resistant Fray Resistant	-70 °C	125 °C	Sleeve	0.438 in	Clean Cut Self Extinguishing	Black White	Expandable	Halogen Free Polyethylene Terephthalate (PET)	0.29 in	Flame Retardant	0.25 in	1000 ft	UL VW-1
HELLERMANNTYTON 170-03039															Bench Mount Hot Knife	Sleeving
HELLERMANNTYTON 170-03074	Abrasion and Cut Resistant	-70 °C	125 °C	Sleeve	1.25 in	Chemical Resistant Solvent Resistant	Gray	Expandable	Halogen Free Polyethylene Terephthalate (PET)	0.8 in	Flame Retardant	0.75 in	75 ft	UL VW-1			Fluid Resistant Gasoline Resistant
HELLERMANNTYTON 170-03183	Abrasion Resistant	-70 °C	125 °C	Self Wrap		Dust Resistant Noise Reduction	Black	Split Flexible Tube	Polyethylene Terephthalate (PET)	0.657 in		0.625 in	250 ft	UL VW-1				0.027 in
HELLERMANNTYTON 170-03040															Hand Held Hot Knife	Sleeving
HELLERMANNTYTON 170-03099	Abrasion Resistant	-75 °C	150 °C	Sleeve	0.25 in	Chemical Resistant Radiation Resistant Self Extinguishing Solvent Resistant	White	Expandable	Ethylene Chlorotrifluoroethylene (ECTFE) Plenum Rated	0.181 in	Flame Resistant Heat Resistant	0.125 in	225 ft	UL VW-1			Gasoline Resistant		UV Resistant
HELLERMANNTYTON 170-03019	Abrasion Resistant Fray Resistant	-70 °C	125 °C	Sleeve	1.188 in	Clean Cut Self Extinguishing	Black White	Expandable	Halogen Free Polyethylene Terephthalate (PET)	1.04 in	Flame Retardant	1 in	50 ft	UL VW-1
HELLERMANNTYTON 170-03012	Abrasion and Cut Resistant Fray Resistant	-70 °C	125 °C	Sleeve	0.75 in	Chemical Resistant Clean Cut Fungus Resistant	Black	Expandable	Halogen Free Polyethylene Terephthalate (PET)	0.54 in		0.5 in	100 ft	UL94 V-0
HELLERMANNTYTON 170-03230	Abrasion Resistant	-70 °C	150 °C	Self Wrap	0.38 in		Orange	Split Flexible Tube	Polyester (PES)			0.098 in	150 ft					0.027 in
HELLERMANNTYTON 170-03008	Abrasion and Cut Resistant	-70 °C	125 °C	Sleeve	1.25 in	Chemical Resistant Solvent Resistant	Black	Expandable	Halogen Free Polyethylene Terephthalate (PET)	0.8 in	Flame Retardant	0.75 in	75 ft	UL VW-1			Fluid Resistant Gasoline Resistant
