07145-80

Active

Qualtek

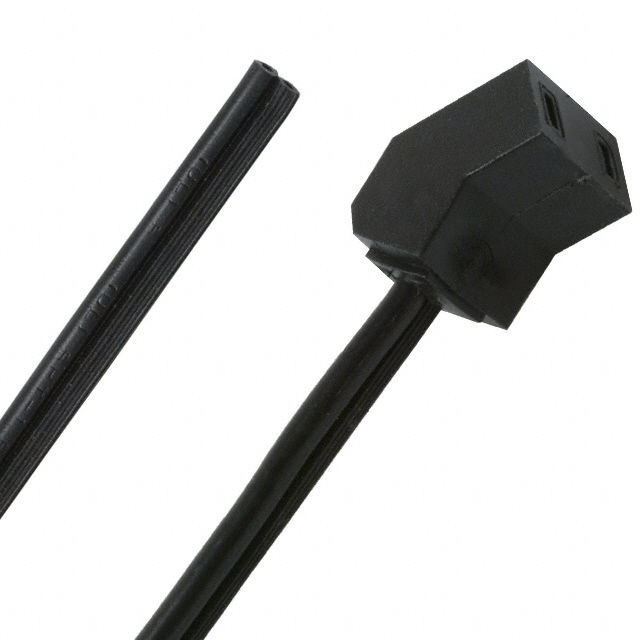

POWER CORD FAN 45DEG ANGLE 80"

Search across all available documentation for this part.

Active

Qualtek

POWER CORD FAN 45DEG ANGLE 80"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	07145-80	07145 Series

1st Connector	Fan Terminal Receptacle 45°	Fan Terminal Receptacle 45°
2nd Connector	Open Wires	Open Wires, NEMA 1-15 Plug
Approval Agency Marking	UL, cUL	UL, cUL
Cord Type	SPT-1	SPT-1
Current Rating (Amps)	10 A	10 A
Fits Terminal Size [x]	4.5	4.5
Fits Terminal Size [y]	2.5	2.5
Length	2.03 m	1.02 - 1270 mm
Length	80 "	5 - 80 in
Length	-	609.6 mm
Length	-	12 - 24 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Cable	Female Receptacle to Cable, Female Receptacle to Male Plug
Voltage Rating	125 VDC	125 VDC
Wire Gauge	18 AWG	18 AWG

POWER CORD FAN 45DEG ANGLE 50"

Part	Approval Agency Marking	Operating Temperature	Wire Gauge	Cord Type	2nd Connector	Style	Length	Length	1st Connector	Voltage Rating	Fits Terminal Size [y]	Fits Terminal Size [x]	Current Rating (Amps)	Number of Conductors	Length [x]	Length [x]
Qualtek 07145-50	cUL, UL	105 C	18 AWG	SPT-1	Open Wires	Female Receptacle to Cable	50 in	1270 mm	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2
Qualtek 07145-SP024	cUL, UL	105 C	18 AWG	SPT-1	NEMA 1-15 Plug	Female Receptacle to Male Plug			Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2	609.6 mm	24 in
Qualtek 07145-60	cUL, UL	105 C	18 AWG	SPT-1	Open Wires	Female Receptacle to Cable	5 '	1.52 m	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2
Qualtek 07145-40	cUL, UL	105 C	18 AWG	SPT-1	Open Wires	Female Receptacle to Cable	40 in	1.02 m	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2
Qualtek 07145-80	cUL, UL	105 C	18 AWG	SPT-1	Open Wires	Female Receptacle to Cable	80 "	2.03 m	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2
Qualtek 07145-36	cUL, UL	105 C	18 AWG	SPT-1	Open Wires	Female Receptacle to Cable	36 in	91.44 cm	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2
Qualtek 07145-SP072	cUL, UL	105 C	18 AWG	SPT-1	NEMA 1-15 Plug	Female Receptacle to Male Plug	72 in	1.83 m	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2
Qualtek 07145-SP036	cUL, UL	105 C	18 AWG	SPT-1	NEMA 1-15 Plug	Female Receptacle to Male Plug	36 in	91.44 cm	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2
Qualtek 07145-12	cUL, UL	105 C	18 AWG	SPT-1	Open Wires	Female Receptacle to Cable		304.8 mm	Fan Terminal Receptacle 45°	125 VDC	2.5	4.5	10 A	2		12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 45° 80.0" (2.03m) Open Wires
