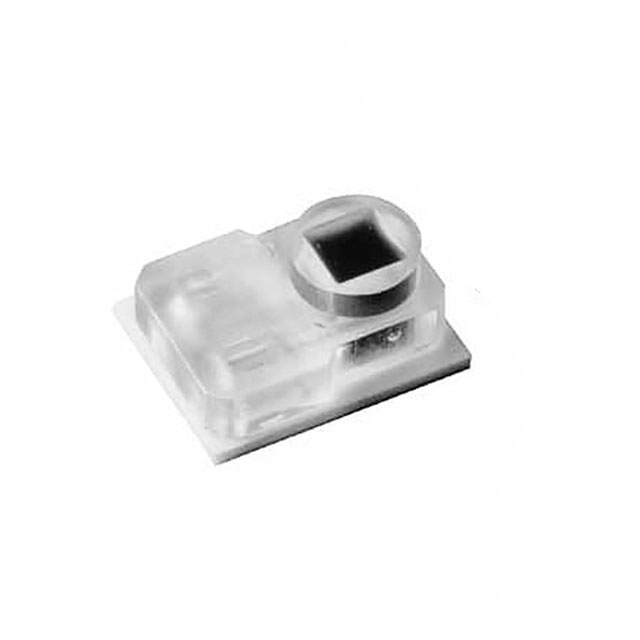

NPC-100T

Active

Amphenol Advanced Sensors (NovaSensor)

SENSOR 5.8PSIG 0.19"

Search across all available documentation for this part.

Active

Amphenol Advanced Sensors (NovaSensor)

SENSOR 5.8PSIG 0.19"

Technical Specifications

Parameters and characteristics for this part

SENSOR 5.8PSIG 0.19"

Part	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Accuracy	Features	Port Style	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Termination Style	Applications
Amphenol Advanced Sensors (NovaSensor) NPC-100T	Male	0.19 "	4.8 mm	40 °C	15 °C	Vented Gauge	2 %	Temperature Compensated	Barbless	Module	125 PSI	861.84 kPa	10 V	1 V	Wheatstone Bridge	-1 PSI	5.8 PSI	-6.67 kPa	40 kPa	SMD (SMT) Tab	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor -0.97PSI ~ 5.8PSI (-6.67kPa ~ 40kPa) Vented Gauge Male - 0.19" (4.8mm) Tube Module
