74ABT32N,112

Active

NXP USA Inc.

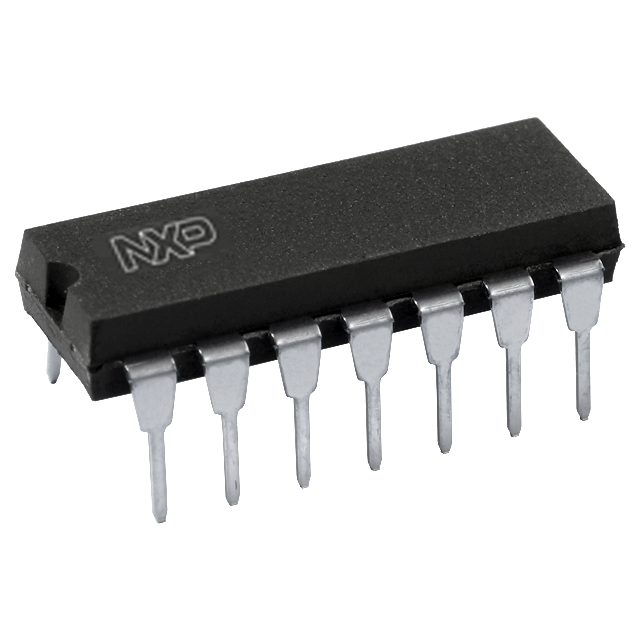

IC GATE OR 4CH 2-INP 14DIP

Search across all available documentation for this part.

Documents74ABT32

Active

NXP USA Inc.

IC GATE OR 4CH 2-INP 14DIP

Documents74ABT32

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT32N,112

Current - Output High, Low [custom]	15 mA
Current - Output High, Low [custom]	20 mA
Current - Quiescent (Max) [Max]	50 µA
Input Logic Level - Low	0.8 V
Logic Type	OR Gate
Max Propagation Delay @ V, Max CL	3.4 ns
Mounting Type	Through Hole
Number of Circuits	4
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Supplier Device Package	14-DIP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

IC GATE OR 4CH 2-INP 14DIP

Part	Max Propagation Delay @ V, Max CL	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Circuits	Number of Inputs	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - Low	Package / Case	Package / Case [y]	Package / Case [x]	Current - Quiescent (Max) [Max]
NXP USA Inc. 74ABT32N,112	3.4 ns	OR Gate	15 mA	20 mA	4.5 V	5.5 V	4	2	14-DIP	Through Hole	85 °C	-40 °C	0.8 V	14-DIP	7.62 mm	0.3 "	50 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

OR Gate IC 4 Channel 14-DIP
