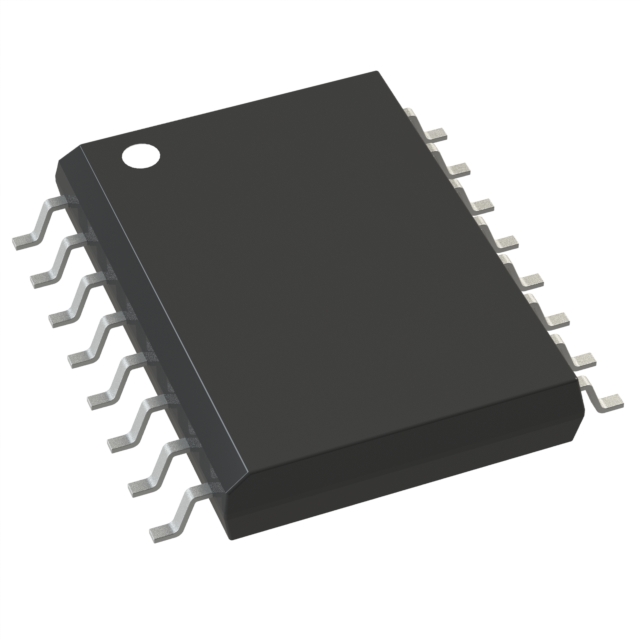

EM6819F4-A005-TP16B+

Active

EM Microelectronic

IC MCU 8BIT 11.5KB FLASH 16TSSOP

Search across all available documentation for this part.

Active

EM Microelectronic

IC MCU 8BIT 11.5KB FLASH 16TSSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM6819F4-A005-TP16B+	EM6819F4 Series

Applications	-	Converter, Power Supplies
Connectivity	I2C, SPI, UART/USART	I2C, SPI, UART/USART
Core Processor	CR816L	CR816L
Core Size	8-Bit	8-Bit
Data Converters [custom]	10	10
Data Converters [custom]	4	4 - 8
Mounting Type	Surface Mount	Surface Mount
Number of I/O	12	12 - 24
Number of Outputs	-	8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	External, Internal	External, Internal
Package / Case	16-TSSOP	16-TSSOP, 20-VFQFN Exposed Pad
Package / Case [x]	0.173 in	0.173 in
Package / Case [y]	4.4 mm	4.4 mm
Peripherals	WDT, Brown-out Detect/Reset, PWM, POR, Voltage Detect	WDT, Brown-out Detect/Reset, PWM, POR, Voltage Detect, Temp Sensor
Program Memory Size	11.5 KB	11.5 KB
Program Memory Type	FLASH	FLASH
RAM Size	256 x 8	256 x 8
RAM Size	-	512
Speed	15 MHz	15 MHz
Supplier Device Package	16-TSSOP	16-TSSOP, 20-QFN (4x4)
Voltage - Input	-	3.6 V
Voltage - Input	-	0.9 V
Voltage - Output	-	Multiple
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	0.9 V	0.9 V

IC MCU 8BIT 11.5KB FLASH 16TSSOP

Part	Package / Case [x]	Package / Case	Package / Case [y]	Core Size	Number of I/O	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Program Memory Type	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Connectivity	Oscillator Type	Core Processor	RAM Size	Supplier Device Package	Speed	Program Memory Size	RAM Size	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Voltage - Output	Number of Outputs
EM Microelectronic EM6819F4-A005-TP16B+	0.173 in	16-TSSOP	4.4 mm	8-Bit	12	Brown-out Detect/Reset, POR, PWM, Voltage Detect, WDT	85 °C	-40 °C	Surface Mount	FLASH	10	4	3.6 V	0.9 V	I2C, SPI, UART/USART	External, Internal	CR816L	256 x 8	16-TSSOP	15 MHz	11.5 KB
EM Microelectronic EM6819F4-B000-TP028B+		20-VFQFN Exposed Pad		8-Bit	24	Brown-out Detect/Reset, POR, PWM, Temp Sensor, Voltage Detect, WDT	85 °C	-40 °C	Surface Mount	FLASH	10	8	3.6 V	0.9 V	I2C, SPI, UART/USART	External, Internal	CR816L		20-QFN (4x4)	15 MHz	11.5 KB	512
EM Microelectronic EM6819F4-B005-TP016B+	0.173 in	16-TSSOP	4.4 mm				85 °C	-40 °C	Surface Mount										16-TSSOP				3.6 V	0.9 V	Converter, Power Supplies	Multiple	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 1.40

General part information

CR816L - Microcontroller IC 8-Bit 15MHz 11.5KB (4K x 23) FLASH 16-TSSOP
