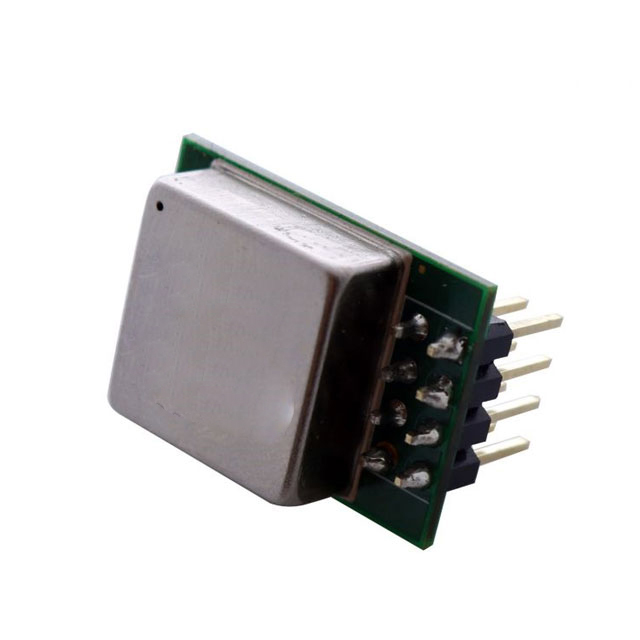

MEZDPD4506A-8533
ActiveMonolithic Power Systems Inc.
DC DC CONVERTER 0.6-22V
MEZDPD4506A-8533
ActiveMonolithic Power Systems Inc.
DC DC CONVERTER 0.6-22V
Description
General part information
MEZDPD4506A-8533
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 22V 6A 4V - 45V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MEZDPD4506A-8533 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 6 A |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package / Case | 8-DIP Module |
| Size / Dimension Height | 0.34 in |
| Size / Dimension Length | 0.74 in |
| Size / Dimension Width | 0.74 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 45 V |
| Voltage - Input (Min) | 4 V |
| Voltage - Output 1 (Max) | 22 V |
| Voltage - Output 1 (Min) | 0.6 V |
