20020011-G081B01LF

Active

AMPHENOL ANYTEK

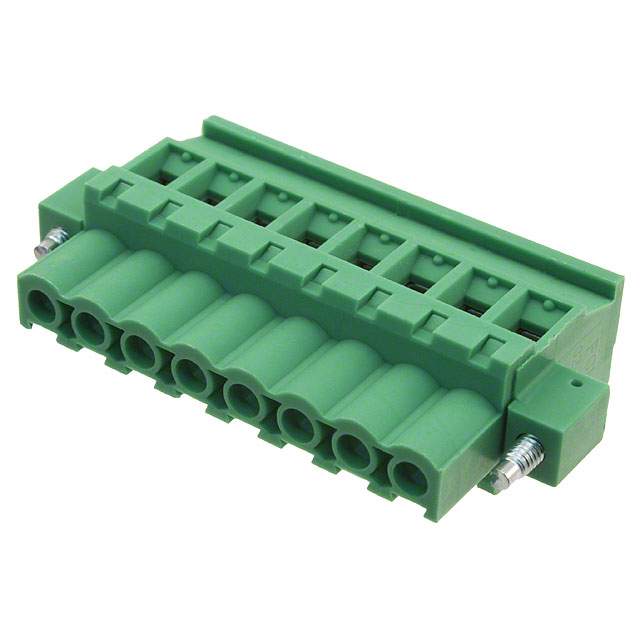

TERM BLOCK PLUG 8POS 270DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

20020011-G081B01LF

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 8POS 270DEG 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	660	$ 1.54

Description

General part information

20020011 Series

8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20020011-G081B01LF	20020011 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	12 A	12 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin	Thermoplastic Resin
Insulation Height	1.024 "	1.024 "
Insulation Height	26.01 mm	26.01 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	8	2 - 8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Plug Wire Entry	270 °	270 °
Positions Per Level	8	2 - 8
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.4 Nm	0.4 Nm
Torque - Screw	3.5 Lb-In	3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²	1 mm²
Wire Strip Length [Max]	7 mm	7 mm
Wire Strip Length [Min]	6 mm	6 mm

20020011 Series

TERM BLOCK PLUG 8POS 270DEG 5MM

Part	Material Flammability Rating	Positions Per Level	Mounting Type	Number of Positions	Contact Mating Finish	Wire Strip Length [Max]	Wire Strip Length [Min]	Housing Material	Plug Wire Entry	Contact Material	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Screw Size	Current - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Type	Torque - Screw	Torque - Screw	Termination Style	Insulation Height	Insulation Height	Voltage - UL
AMPHENOL ANYTEK 20020011-G081B01LF	UL94 V-0	8	Free Hanging (In-Line)	8	Tin	7 mm	6 mm	Thermoplastic Resin	270 °	Copper Alloy	1	2.5 mm²	1 mm²	M3	12 A	24 AWG	12 AWG	Mating Flange, Retention Latches (Non-Wire Side)	Green	-40 °C	115 °C	5 mm	0.197 in	Plug, Female Sockets	0.4 Nm	3.5 Lb-In	Screw - Rising Cage Clamp	1.024 "	26.01 mm	300 V
