RES2-005M-S
ActiveLoadstar Sensors

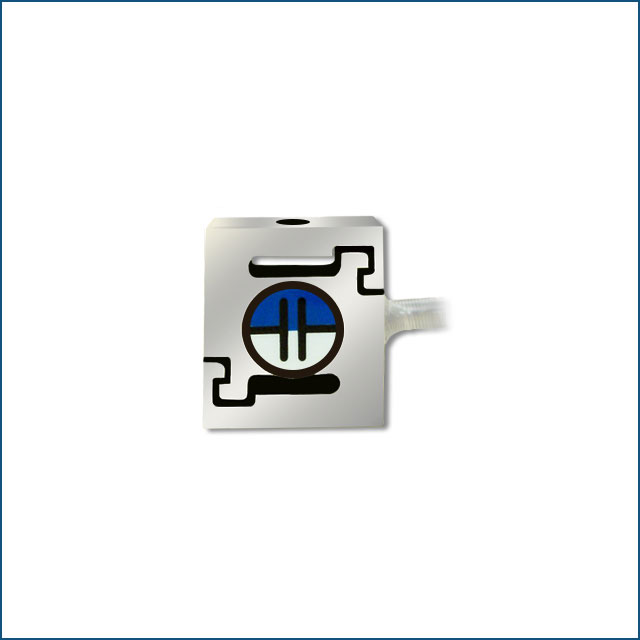

5 KGF S-BEAM JR LOAD CELL
RES2-005M-S
ActiveLoadstar Sensors
5 KGF S-BEAM JR LOAD CELL
Description
General part information
RES2-005M-S
5 KGF S-BEAM JR LOAD CELL
Technical Specifications
Parameters and characteristics for this part
| Specification | RES2-005M-S |
|---|---|
| Accuracy | 0.5 % RH |
| Actuator Size | M4 |
| Actuator Style | Internal Thread |
| Actuator Type | S-Beam |
| Compensated Temperature (Max) | 40 °C |
| Compensated Temperature (Min) | -10 °C |
| Includes | Sensor |
| Operating Force | 5 kgf |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Analog Voltage mV/V (millivolts) |
| Sensor Type | Load Cell |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
