Description
General part information

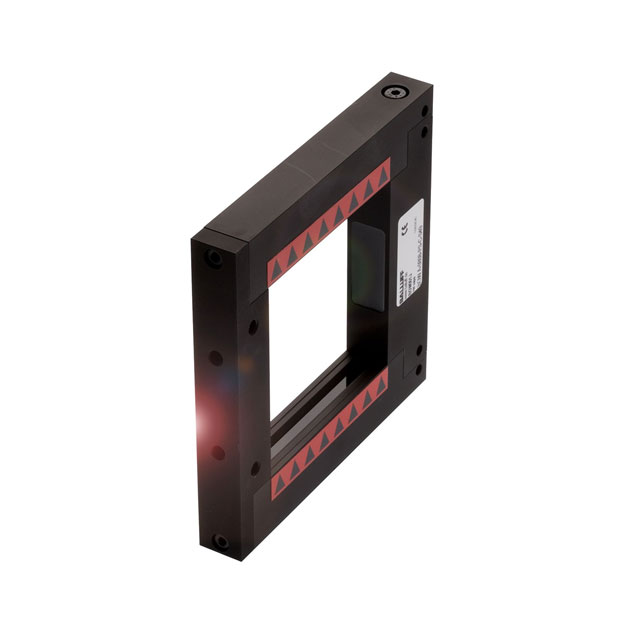

BOW001J
Through-Beam Optical Sensor PNP-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | BOW001J |
|---|---|
| Adjustment Angle | 270 ° |
| Adjustment Type | Potentiometer, Adjustable |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 880 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | PNP-NO |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
