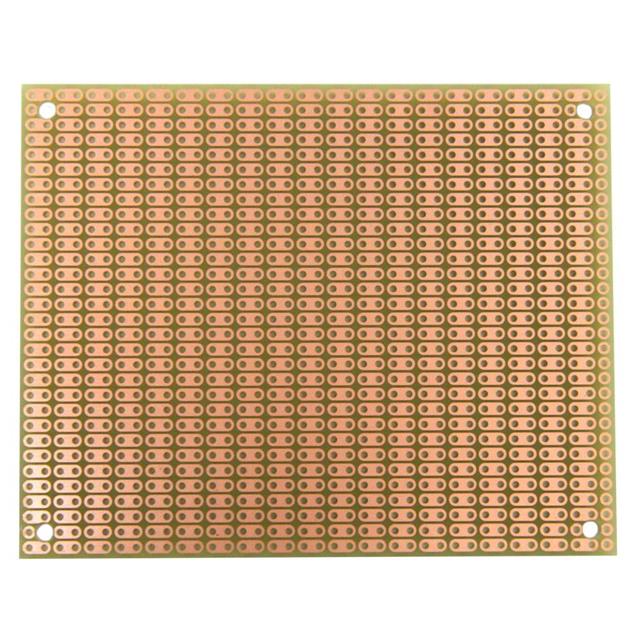

Specification	PR2H2

Board Thickness	0.063 in
Circuit Pattern	Hole Pad (Single Side), Common Bus
Circuit Pattern Hole Count	2
Hole Diameter	0.037 in
Material	FR4 Epoxy Glass
Pitch	0.1 in
Pitch (Grid)	0.1 in
Plating	Non-Plated Through Hole (NPTH), Plated Through Hole (PTH)
Proto Board Type	General Purpose, Breadboard
Size / Dimension Length	3.94 in
Size / Dimension Width	3.15 in
