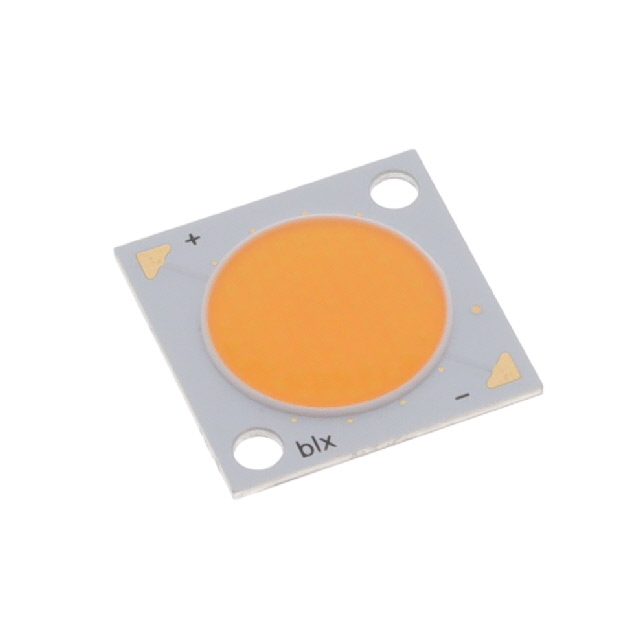

BXRE-27G3000-D-83

Active

BRIDGELUX

LED COB V SER GEN 8 WHT SQ 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-27G3000-D-83

Active

BRIDGELUX

LED COB V SER GEN 8 WHT SQ 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-27G3000-D-83	BXRE-27 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 98
Current - Max	-	1 - 950 mA
Current - Test	-	1.05 - 900 mA
Features	-	Dimming
Height	-	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	15 mm	6.1 - 23.3 mm
Lumens/Watt @ Current - Test	139 lm/W	91 - 184 lm/W
Luminous Flux @ Current/Temperature	-	320 - 20808 lm
Size / Dimension	-	12.5 - 28 mm
Size / Dimension	-	12.5 - 28 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	-	8.4 - 57 V

BXRE-27 Series

LED COB V10 ARRAY WHT SQU 2700K

...

Part	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Type	Viewing Angle	CCT (K)	Configuration	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature	Current - Test	Lens Type	CRI (Color Rendering Index)	Height [z]	Temperature - Test	Features
BRIDGELUX BXRE-27G1000-B-23	9.9 mm	15.8 mm	15.8 mm	103 lm/W	Chip On Board (COB)	120 °	2700 K	Square	700 mA	26.5 V	Warm, White	956 lm	350 mA	Flat	90	1.7 mm
BRIDGELUX BXRE-27G1000-C-83	10.2 mm			138 lm/W	Chip On Board (COB)	120 °	2700 K	Square	1 A	30.7 V	Warm, White	1274 lm	300 mA	Flat	90	1.65 mm
BRIDGELUX BXRE-27G0400-A-23	6.1 mm	12.5 mm	12.5 mm	102 lm/W	Chip On Board (COB)	120 °	2700 K	Square	350 mA	18 V	Warm, White	320 lm	175 mA	Flat	90	1.7 mm
BRIDGELUX BXRE-27E1000-B-83	10.2 mm				Chip On Board (COB)	120 °	2700 K	Square	500 mA	34.2 V	Warm, White	1145 lm	200 mA	Flat	80	1.65 mm
BRIDGELUX BXRE-27E0400-A-23	6.1 mm	12.5 mm	12.5 mm	121 lm/W	Chip On Board (COB)	120 °	2700 K	Square	350 mA	18 V	Warm, White	381 lm	175 mA	Flat	80	1.7 mm
BRIDGELUX BXRE-27G1000-C-72	10.2 mm			110 lm/W	Chip On Board (COB)	120 °	2700 K	Square	720 mA	33.8 V	Warm, White	1348 lm	360 mA	Flat	90	1.7 mm	85 °C
BRIDGELUX BXRE-27G65F0-D-82	23.3 mm	28 mm	28 mm	173 lm/W	Chip On Board (COB)	120 °	2700 K	Square	1.05 A	33.7 V	Warm, White	6103 lm		Flat	90	1.65 mm	85 °C	Dimming
BRIDGELUX BXRE-27G4000-C-72	19.2 mm	24 mm	24 mm	114 lm/W	Chip On Board (COB)	120 °	2700 K	Square	2.34 A	34 V	Warm, White	4529 lm		Flat	90	1.7 mm	85 °C
BRIDGELUX BXRE-27G1000-C-73	10.2 mm			110 lm/W	Chip On Board (COB)		2700 K	Square	720 mA	34 V	Warm, White	1348 lm	360 mA	Flat	90	1.7 mm	85 °C
BRIDGELUX BXRE-27G2000-C-72	14 mm	19 mm	19 mm	114 lm/W	Chip On Board (COB)	120 °	2700 K	Square	1.26 A	33.9 V	Warm, White	2438 lm	630 mA	Flat	90	1.7 mm	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.30
		10	$ 3.85
		100	$ 3.56

Description

General part information

BXRE-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V Series™ Gen 8 White, Warm Square
