Description
General part information
A6X30143134

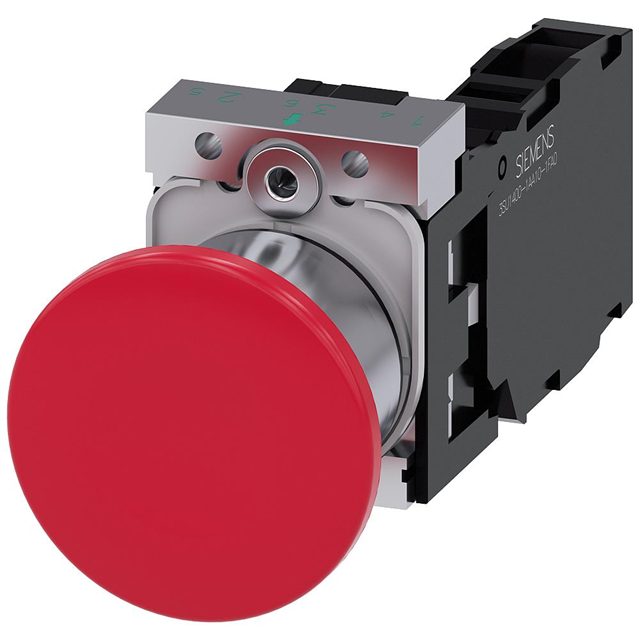

SWITCH ESTOP PULL RESET 10A 500V
Technical Specifications
Parameters and characteristics for this part
| Specification | A6X30143134 |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating | 10 A |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP66, IP67, IP69K |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Pull |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
