1751565
ActivePhoenix Contact

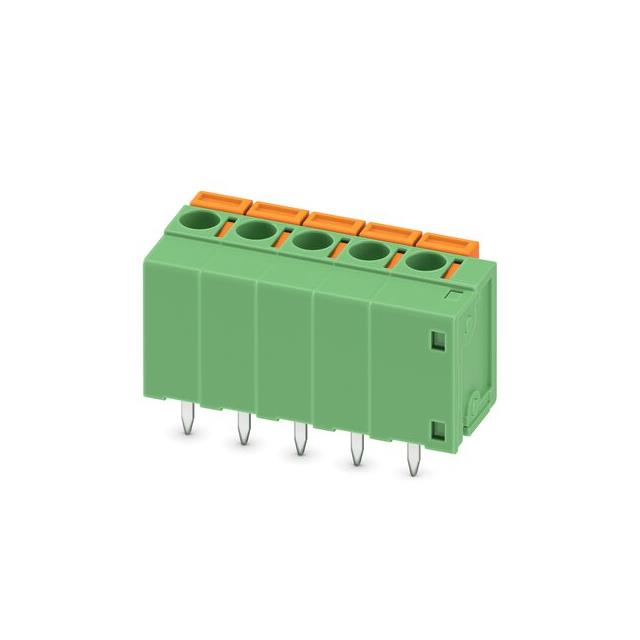

TERM BLK 5POS TOP ENT 5.08MM PCB
1751565
ActivePhoenix Contact
TERM BLK 5POS TOP ENT 5.08MM PCB
Description
General part information
1751565
5 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1751565 |
|---|---|
| Current | 10 A |
| Features | Interlocking (Side), Lever Actuated |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
