Description
General part information

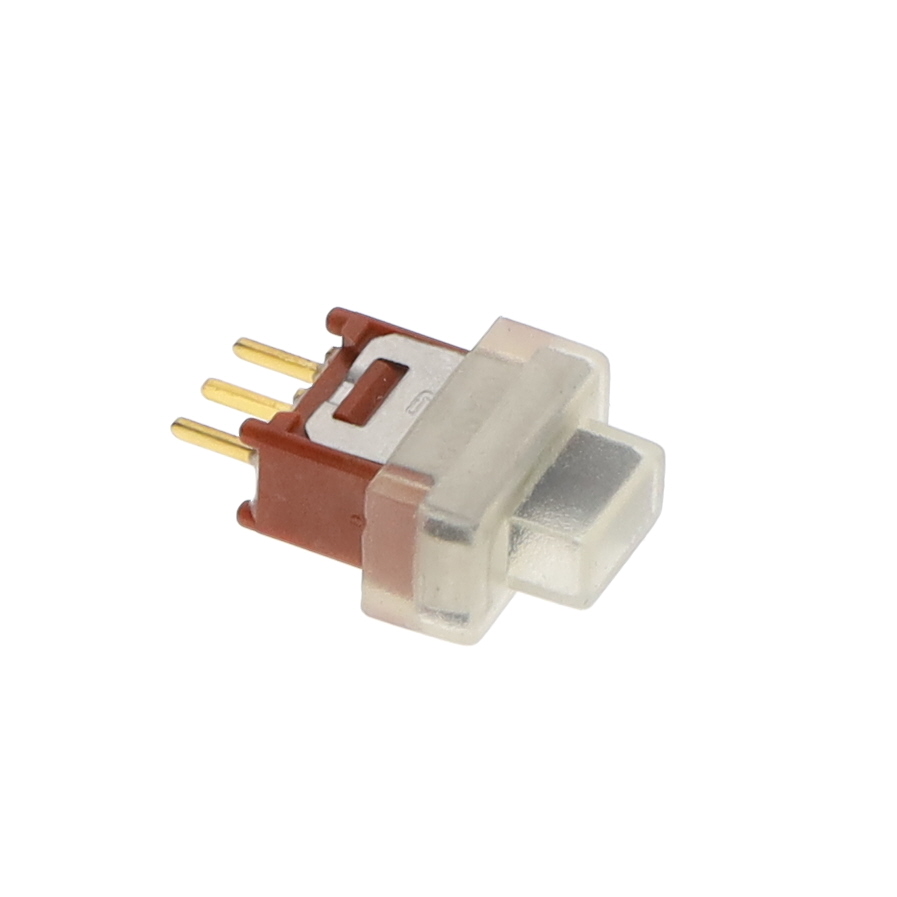

500ASSP1M2RERUBERBOOT
Slide Switch SPDT Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 500ASSP1M2RERUBERBOOT |
|---|---|
| Actuator Length | 3.1 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 30000 Cycles |
| Mechanical Life (Cycles) | 30000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-On |
| Switch Travel | 3.05 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
