MMF404748
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-13-120CZA-120 - STUDENT GAGE
MMF404748
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-13-120CZA-120 - STUDENT GAGE
Description
General part information
MMF404748

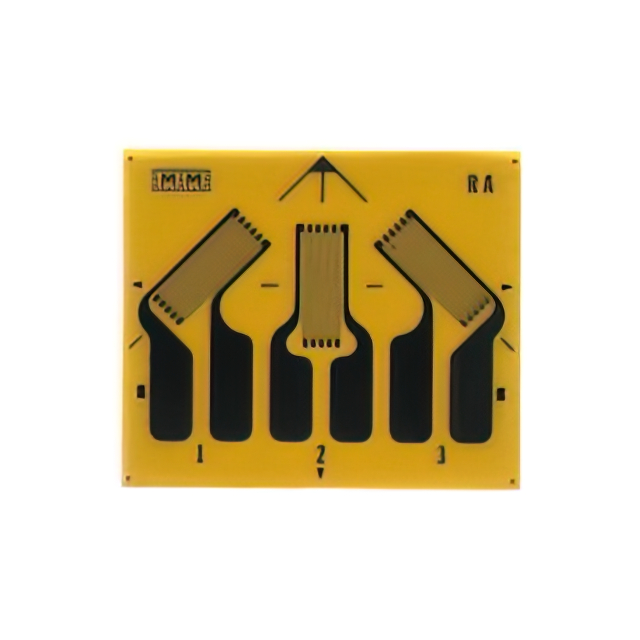

Rectangular Rosette Strain Gauge ±5% 0.125" (3.18mm) 0.060" (1.52mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404748 |
|---|---|
| Length - Active | 0.125 in |
| Length - Overall | 0.42 in |
| Length - Overall Pattern | 0.3 in |
| Length - Overall Pattern (mm) | 7.62 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Rectangular Rosette |
| Resistance | 120 Ohm |
| Resistance Tolerance (%) | 0.4 % |
| Strain Range | 5 % |
| Width - Active | 0.06 in |
| Width - Overall | 0.62 in |
| Width - Overall Pattern | 0.56 in |
