4282-9SG-300
ActiveConxall/Switchcraft

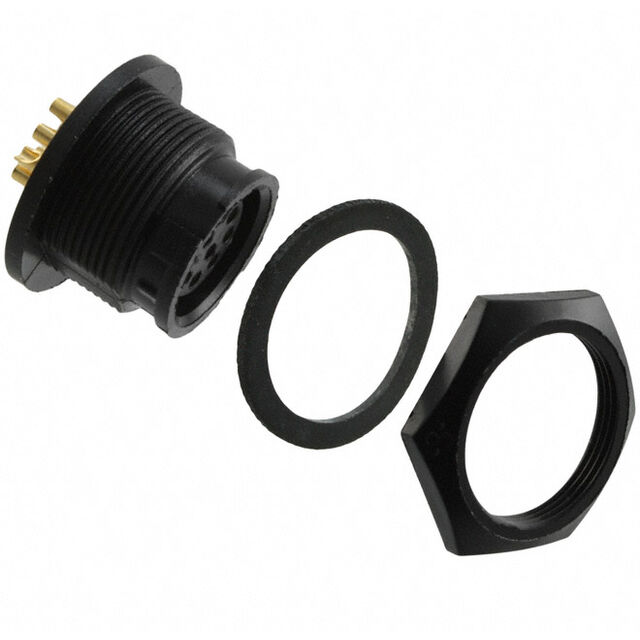

CONN RCPT FMALE 9P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
4282-9SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 9P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4282-9SG-300 | 4282-9S Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 9 | 9 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
4282-9S Series
CONN RCPT FMALE 9P GOLD SLDR CUP
| Part | Ingress Protection | Contact Material | Current Rating (Amps) | Color | Number of Positions | Orientation | Voltage Rating | Mounting Feature | Shielding | Primary Material | Contact Finish - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 4282-9SG-300 | Weathertight | Brass | 5.6 A | Black | 9 | Keyed | 600 V | Bulkhead - Front Side Nut | Unshielded | Plastic | Gold | Bayonet Lock | -40 °C | 115 °C | Receptacle, Female Sockets |
Conxall/Switchcraft 4282-9SG-3ES | Weathertight | Brass | 5.6 A | Black | 9 | Keyed | 600 V | Bulkhead - Front Side Nut | Unshielded | Plastic | Gold | Bayonet Lock | -40 °C | 115 °C | Receptacle, Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.11 | |
| 10 | $ 16.56 | |||
| 25 | $ 15.70 | |||
| 50 | $ 15.47 | |||
| 100 | $ 13.65 | |||
| 250 | $ 12.74 | |||
| 500 | $ 12.47 | |||
Description
General part information
4282-9S Series
9 Position Circular Connector Receptacle, Female Sockets Solder Cup
