PC-16-55
ActiveSignal Transformer

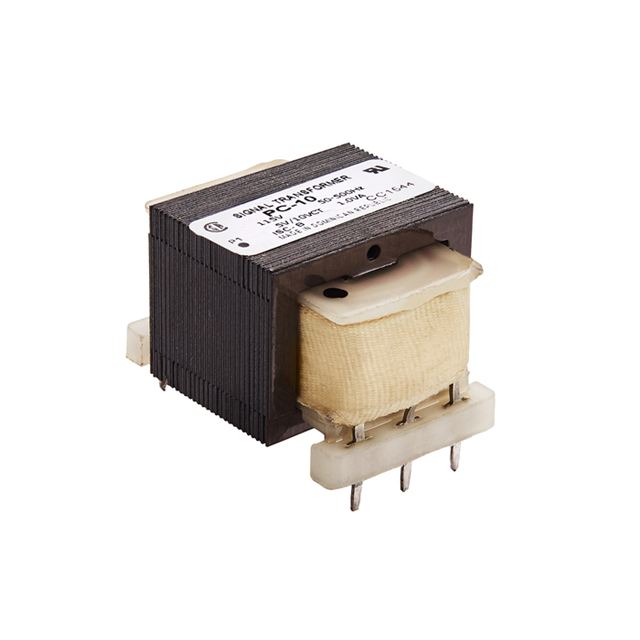

POWER TRANSFORMER 1500VRMS 1VA 6 TERMINAL PIN THRU-HOLE
PC-16-55
ActiveSignal Transformer
POWER TRANSFORMER 1500VRMS 1VA 6 TERMINAL PIN THRU-HOLE
Description
General part information
PC-16-55
POWER TRANSFORMER 1500VRMS 1VA 6 TERMINAL PIN THRU-HOLE
Technical Specifications
Parameters and characteristics for this part
| Specification | PC-16-55 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 110 mA |
| Current - Output (Max) Series | 55 mA |
| Height - Seated (Max) | 21.08 mm |
| Mounting Type | Through Hole |
| Power - Max | 1 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 34.92 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) (Parallel) | 8 V |
| Voltage - Secondary (Full Load) (Series) | 16 V |
| Weight | 0.157 lb |
