PWB200AA30
ActiveSanRex Corporation
THYRISTOR MODULE 300V 200A
PWB200AA30
ActiveSanRex Corporation
THYRISTOR MODULE 300V 200A
Description
General part information
PWB200AA30

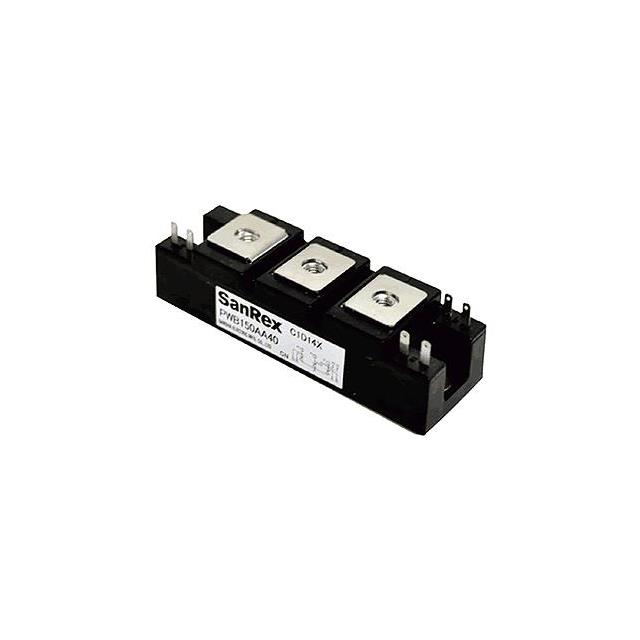

SCR Module 300 V 314 A Bridge, 3-Phase - All SCRs Chassis Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PWB200AA30 |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Hold (Ih) (Max) | 70 mA |
| Current - Non Rep. Surge (Itsm) | 5400 A, 6000 A |
| Current - Non Rep. Surge Frequencies | 60Hz, 50Hz |
| Current - Non Rep. Surge Type | Itsm |
| Current - On State (It (RMS)) (Max) | 314 A |
| Current - On State (Max) | 200 A |
| Mounting Type | Chassis Mount |
| Number of SCRs | 3 count |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Structure | Bridge, 3-Phase - All SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 300 V |
