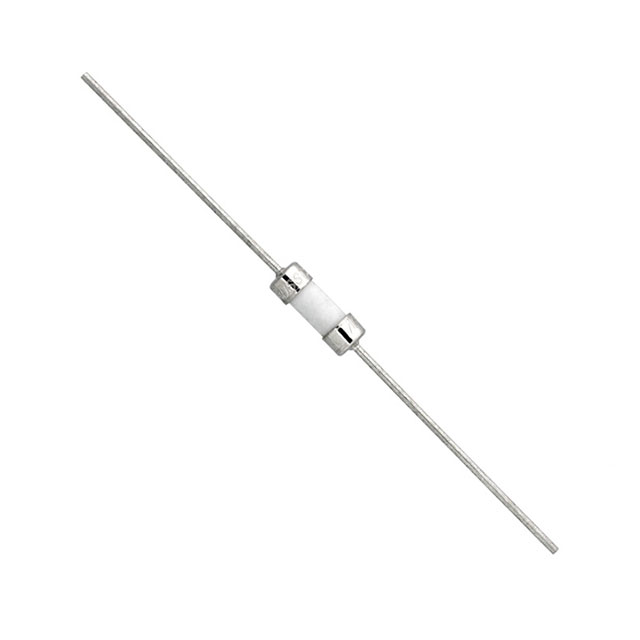

C310T-SC-6-3-R-TR1
ActiveEaton - Electronics Division
FUSE CERAMIC 6.3A 250VAC AXIAL
C310T-SC-6-3-R-TR1
ActiveEaton - Electronics Division
FUSE CERAMIC 6.3A 250VAC AXIAL
Description
General part information
C310T-SC-6-3-R-TR1
6.3 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole Cartridge, Non-Standard (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | C310T-SC-6-3-R-TR1 |
|---|---|
| Approval Agency | KC, cURus, CQC, TUV, VDE |
| Breaking Capacity | 63 A |
| Current Rating | 6.3 A |
| DC Cold Resistance | 7.1 mOhms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 123 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.142 in |
| Size / Dimension Length | 0.394 in |
| Voltage Rating - AC | 250 V |
