2701402
LTBPhoenix Contact
CBL ASSY RPSMA-NTYPE PL-J 19.69"
2701402
LTBPhoenix Contact
CBL ASSY RPSMA-NTYPE PL-J 19.69"
Description
General part information
2701402

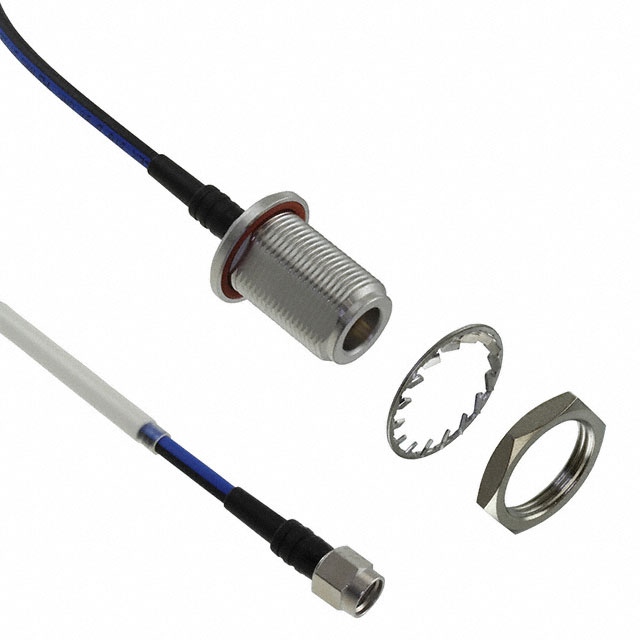

Cable Assembly Coaxial RP-SMA to N-Type RADOX® (LSZH) 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2701402 |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RADOX® (LSZH) |
| Color | Blue |
| Frequency - Max | 5 GHz |
| Length | 19.69 in |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, N-Type |
