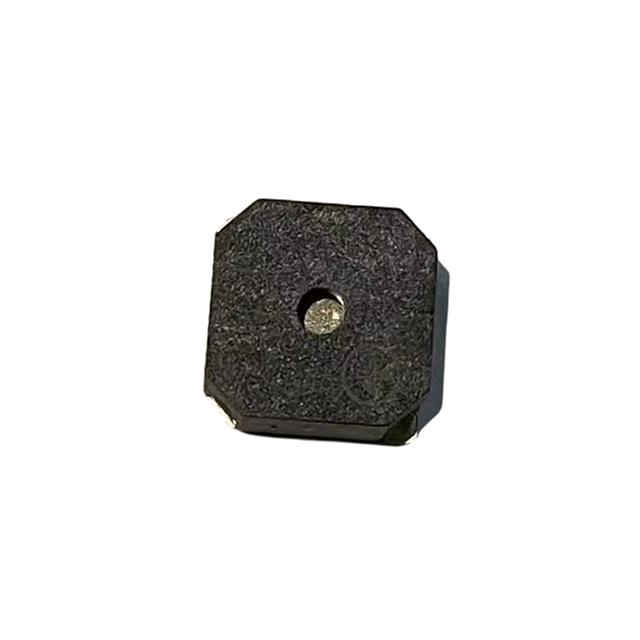

OWMB-858540SA-40-15
ActiveOle Wolff Electronics Inc
BUZZER MAGN 5V 8.5X8.5MMSMD
OWMB-858540SA-40-15
ActiveOle Wolff Electronics Inc
BUZZER MAGN 5V 8.5X8.5MMSMD
Description
General part information
OWMB-858540SA-40-15
Buzzers Transducer, Externally Driven Magnetic 5 V 150mA 4kHz 100dB @ 5V, 10cm Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | OWMB-858540SA-40-15 |
|---|---|
| Current - Supply | 150 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) | 0.157 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.315 in |
| Sound Pressure Level (SPL) | 100 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 5 VAC |
| Voltage Range (Max) | 6 V |
| Voltage Range (Min) | 1 V |
