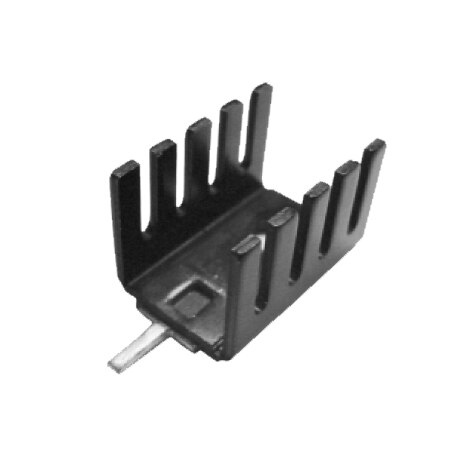

Specification	ATS-PCB1013

Attachment Method	PC Pin, Bolt On
Fin Height	0.5 in
Length	0.75 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Shape	Fins, Rectangular
Thermal Resistance	9.5 °C/W, 24.4 °C/W
Type	Vertical, Board Level
Width	0.52 in

ATS-PCB Series

...

Part	Width	Package Cooled	Length	Material	Fin Height	Type	Thermal Resistance	Material Finish	Attachment Method	Shape
Advanced Thermal Solutions Inc. ATS-PCBT1075	0.775 in	TO-126	0.52 in	Aluminum	0.319 in	Board Level	25 °C/W 35.8 °C/W	Black Anodized	Bolt On	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCBT1092	1.772 in	TO-220	1.181 in	Aluminum	0.079 in	Board Level	11 °C/W 23 °C/W		Bolt On	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCB1033	1 in	TO-220	0.85 in	Aluminum	0.5 in	Board Level Vertical	9 °C/W 20 °C/W	Black Anodized	Bolt On PC Pin	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCB1037	1 in	TO-220	1.38 in	Aluminum	0.5 in	Board Level Vertical	13 °C/W 18 °C/W	Black Anodized	Bolt On PC Pin	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCBT1085	0.504 in	TO-220	0.748 in	Aluminum	0.504 in	Board Level	4.4 °C/W 27.3 °C/W	Black Anodized	Clip	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCB1019	1 in	TO-202 TO-220	1.181 in	Aluminum	0.5 in	Board Level	10.1 °C/W 22 °C/W	Black Anodized	Bolt On	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCB1064	0.504 in	TO-220	0.748 in	Aluminum	0.5 in	Board Level	10.2 °C/W 27.3 °C/W	Black Anodized	Clip	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCB1006	0.86 in	TO-220	0.752 in	Aluminum	0.39 in	Board Level Vertical	11 °C/W 21.2 °C/W	Black Anodized	Bolt On PC Pin	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCB1002	0.504 in	TO-220 TO-262	0.748 in	Aluminum	0.5 in	Board Level Vertical	10.2 °C/W 27.3 °C/W	Black Anodized	Clip PC Pin	Fins Rectangular
Advanced Thermal Solutions Inc. ATS-PCBM1104	1.65 in	TO-218 TO-220 TO-247	1.5 in	Aluminum	1 in	Board Level Vertical	1.4 °C/W 3.8 °C/W	Black Anodized	Bolt On PC Pin	Fins Rectangular
