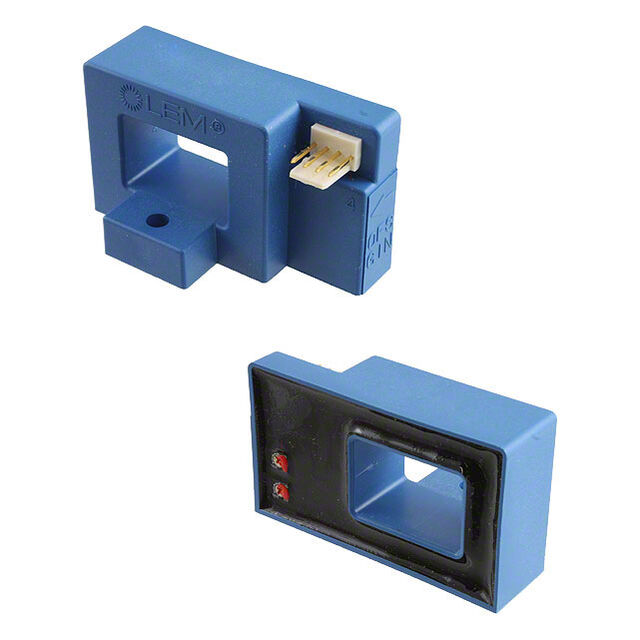

HAC 400-S
NRNDLEM USA Inc.
SENSOR CURRENT HALL 400A AC/DC
HAC 400-S
NRNDLEM USA Inc.
SENSOR CURRENT HALL 400A AC/DC
Description
General part information
HAC 400-S
Current Sensor 400A 1 Channel Hall Effect, Open Loop Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | HAC 400-S |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 400 A |
| Current - Supply (Max) | 25 mA |
| For Measuring | AC, DC |
| Linearity Tolerance | 1 % |
| Maximum Frequency | 50 kHz |
| Minimum Frequency | DC |
| Mounting Type | Panel Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -10 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 7 µs |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | -15 V |
