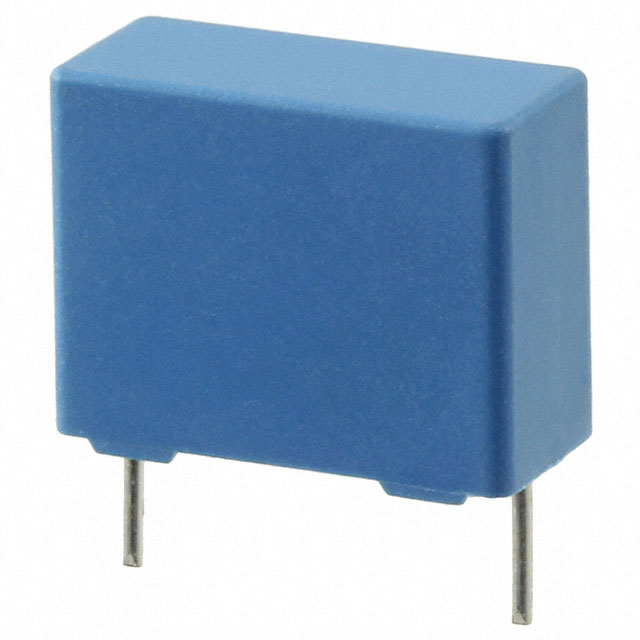

B32642B6683J
ActiveEPCOS - TDK Electronics
CAP FILM 0.068UF 5% 630VDC RAD
B32642B6683J
ActiveEPCOS - TDK Electronics
CAP FILM 0.068UF 5% 630VDC RAD
Description
General part information
B32642B6683J
0.068 µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32642B6683J |
|---|---|
| Applications | Switching, DC Link, DC Filtering, High Frequency |
| Capacitance | 0.068 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.551 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.315 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 400 Vpk |
| Voltage Rating - DC | 630 V |
