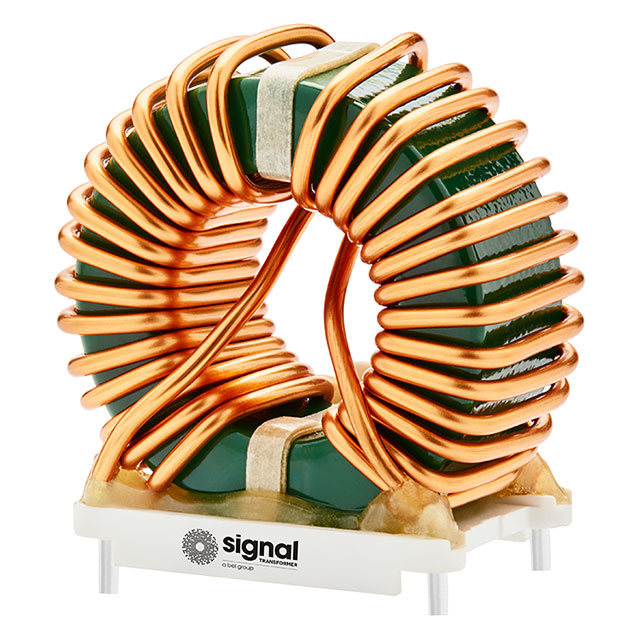

HCTC-2.4-17
ActiveSignal Transformer
CMC 2.4MH 17A 2LN TH
HCTC-2.4-17
ActiveSignal Transformer
CMC 2.4MH 17A 2LN TH
Description
General part information
HCTC-2.4-17
2.4 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 17A DCR 8mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | HCTC-2.4-17 |
|---|---|
| Current Rating (Max) | 17 A |
| DC Resistance (DCR) (Max) | 8 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.65 in |
| Inductance | 2.4 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.7 in |
| Size / Dimension Width | 0.7 in |
