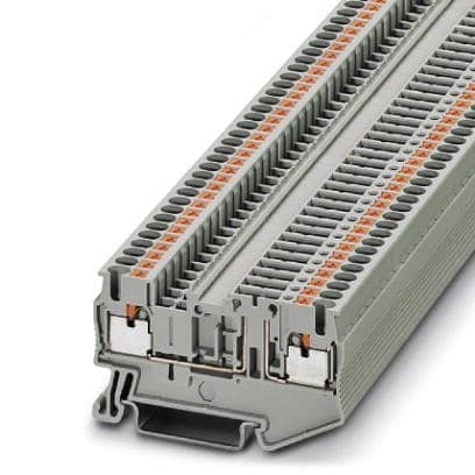

Specification	3210185

Color	Gray
Current - IEC	20 A
Current - UL	20 A
Disconnect Type	Open
Number of Levels	1
Number of Positions	2
Terminal Width	5.2 mm
Termination Style	Push In, Spring
Type	Disconnect
Voltage - IEC	400 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.14 mm²

PT Series

Part	Contact Mating Finish	Number of Positions	Positions Per Level	Termination Style	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Mounting Type	Type	Pitch	Voltage - UL	Current - UL	Color	Current - IEC	Voltage - IEC	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Number of Levels	Plug Wire Entry Angle	Torque - Screw (Minimum)	Torque - Screw (Maximum)	Material Flammability Rating	Insulation Height	Wire Strip Length	Housing Material	Stripping Length	Material - Insulation	Terminal Width	Current - Discharge (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Approval Agency	Voltage - Protection Level (VP) (2416)	Form	Voltage - Continuous Operating (Max) (MCOV) DC	Voltage - Continuous Operating (Max) (MCOV) AC	Number of Poles	Current - Discharge (Nom)	Number of Levels (Connection)	Height (Max)	Length	Housing Color	Wire Termination	Current	Mating Orientation (Angle)	Mating Orientation (Description)	Mating Orientation (Angle) (Alternate)	Voltage	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
Phoenix Contact 2838351
Phoenix Contact 1755648	Tin	8	8	Screw - Rising Cage Clamp	14 AWG	28 AWG	Free Hanging (In-Line)	Plug for Unshrouded Header	0.197 in	300 V	10 A	Green	10 A	630 V	0.2 mm²	2.5 mm²	1	90 °	0.35 Nm	0.4 Nm	UL94 V-0	0.518 in	6 mm	Nylon PA Polyamide
Phoenix Contact 3212154		2		Push In Spring	10 AWG	24 AWG		Earth Ground				Green Yellow			0.2 mm²	6 mm²	1				UL94 V-0				12 mm	Nylon PA Polyamide	6.2 mm
Phoenix Contact 2839198							Base Mount																					5 kA	-40 °C	85 °C	EAC UL	900 V	Module Only	275 VDC	275 VAC	1	2.5 kA
Phoenix Contact 3211778		2		Push In Spring	10 AWG	24 AWG		Feed Through		600 V	30 A	White	32 A	800 V	0.2 mm²	6 mm²	1										6.2 mm
Phoenix Contact 3213739		6		Push In Spring	14 AWG	25.5 AWG		Earth Ground				Green Yellow			0.14 mm²	1.5 mm²	3				UL94 V-0				8 mm	Nylon PA Polyamide	3.5 mm											Connected
Phoenix Contact 3212008		2		Plug Receptacles Push In Spring	10 AWG	24 AWG	DIN Rail	Plug Connection		600 V	28 A		32 A	800 V	0.2 mm²	6 mm²	1				UL94 V-0				10 mm	Nylon PA Polyamide	6.2 mm												1.732 in	2.205 in	Orange
Phoenix Contact 3211820		2		Push In Spring	8 AWG	20 AWG		Feed Through		600 V	40 A	Orange	41 A	1000 V	0.5 mm²	10 mm²	1										8.2 mm
Phoenix Contact 1764833			3				Through Hole		0.138 in			Blue					1																									Leg Spring Push-In Spring Screwless	2 A	45 °	Angle with Board	135 °	300 V	16 AWG	24 AWG
Phoenix Contact 3208747		3		Push In Spring	6 AWG	20 AWG		Feed Through		600 V	60 A	Blue	57 A	1000 V	0.5 mm²	16 mm²	1										10.2 mm
