Description
General part information

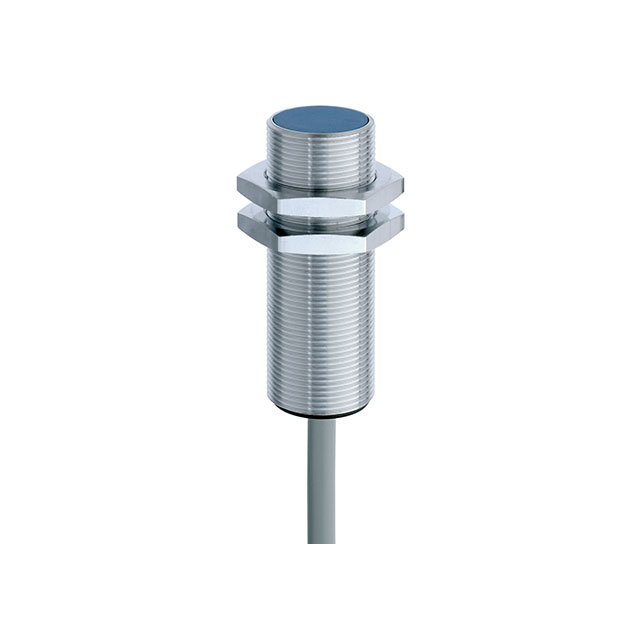

120253 Series
Proximity Sensors CONTRINEX INDUCTIVE SENSOR
Technical Specifications
Parameters and characteristics for this part
| Specification | 1202530150 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Voltage |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance Maximum | 0.394 " |
| Sensing Distance Minimum | 0 cm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
