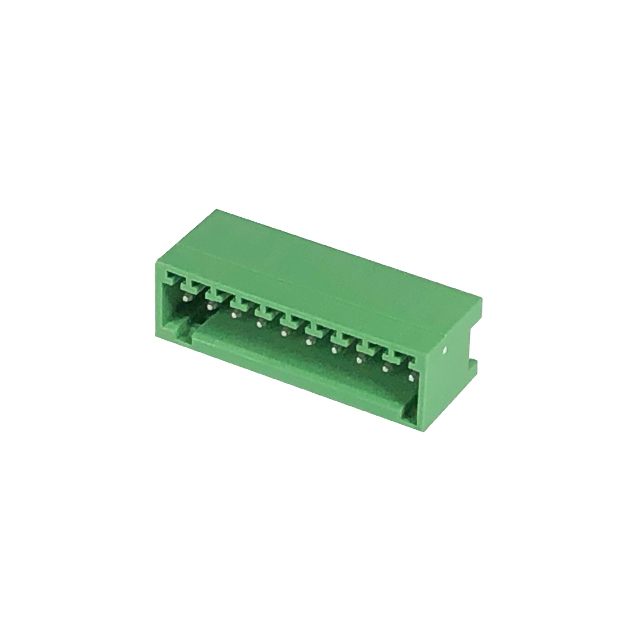

ECH250V-10P
ActiveDinkle Corporation, USA
TERM BLK 10POS 2.50MM HDR
ECH250V-10P
ActiveDinkle Corporation, USA
TERM BLK 10POS 2.50MM HDR
Description
General part information
ECH250V-10P
10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ECH250V-10P |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 4 A |
| Current - UL | 4 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
| Positions Per Level | 10 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 320 V |
| Voltage - UL | 150 V |
