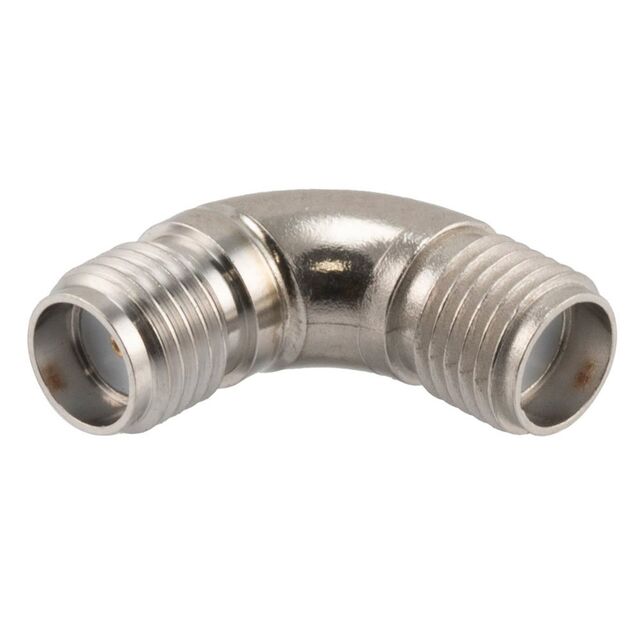

FMAD1194
ActiveFairview Microwave
ADAPT JACK-JACK SMA SS 1.25 VSWR
FMAD1194
ActiveFairview Microwave
ADAPT JACK-JACK SMA SS 1.25 VSWR
Description
General part information
FMAD1194
Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1194 |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMA Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Style | Right Angle |
