02K108-S00S3

Active

Rosenberger

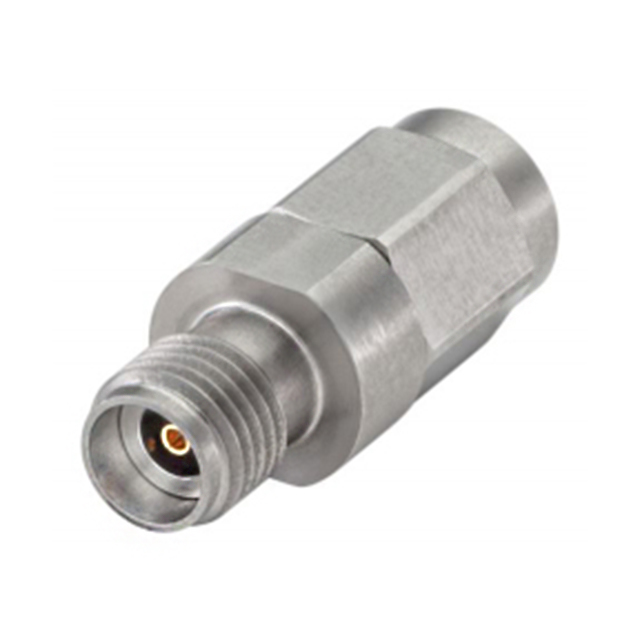

PRECISION 2.92 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 ADAPTER

Technical Specifications

Parameters and characteristics for this part

PRECISION 2.92 ADAPTER

Part	Style	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Insertion Loss	Adapter Series	Center Contact Material	Impedance	Convert From (Adapter End)	Convert From (Adapter End)	Body Material	Dielectric Material	Conversion Type	Mounting Type	Adapter Type	Mating Cycles	Center Contact Plating	Convert To (Adapter End)
Rosenberger 02K108-S00S3	Straight	85 °C	-40 °C	40 GHz	0.32 dB	RPC-1.85, RPC-2.92	Beryllium Copper	50 Ohms	2.92 mm	Jack, Female Socket, OS-2.9	Stainless Steel	Polystyrene (PS)	Between Series	Free Hanging (In-Line)	Plug to Jack	500	Gold	1.85mm Plug, Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 515.49

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 1.85mm Plug, Male Pin 50 Ohms
