MB6010H12B-RSR - MB6010H12B-RSR

MB6010H12B-RSR

Active
Mechatronics Bearing Group

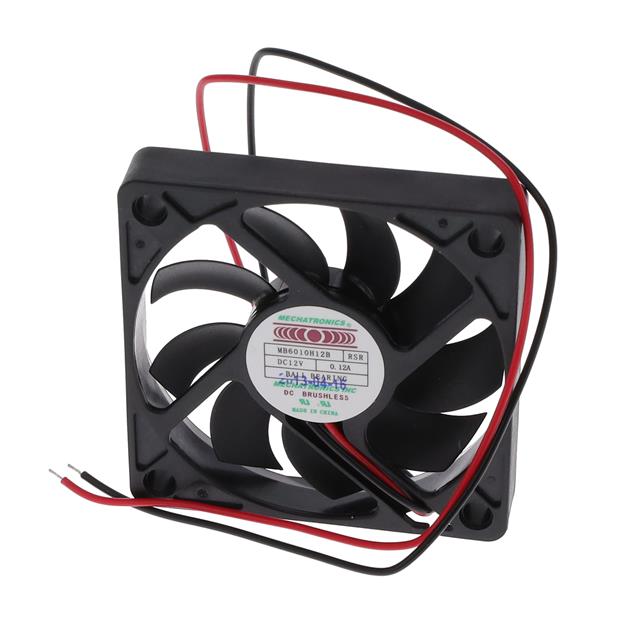

FAN AXIAL 60X10.2MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire SpecsDatasheet+1
MB6010H12B-RSR - MB6010H12B-RSR

MB6010H12B-RSR

Active
Mechatronics Bearing Group

FAN AXIAL 60X10.2MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire SpecsDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMB6010H12B-RSR
Air Flow13.5 CFM
Air Flow0.378 m³/min
Approval AgencyUL, cUL
Bearing TypeBall
Current Rating (Amps)120 mA
Fan TypeTubeaxial
FeaturesThermal Overload Protector (TOP)
Material - BladePolybutylene Terephthalate (PBT)
Noise28 dB
RPM3900 RPM
Size / Dimension [x]60 mm
Size / Dimension [y]60 mm
Static Pressure0.08 in H2O
Static Pressure19.9 Pa
Termination2 Wire Leads
Voltage - Rated12 VDC
Voltage Range [Max]13.8 VDC
Voltage Range [Min]6 VDC
Weight26.76 g
Weight0.059 lb
Width [x]10.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 6.12

Description

General part information

MB6010H12B-RSR

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 13.5 CFM (0.378m³/min) 2 Wire Leads
