VLS6045EX-101M-H
ActiveTDK Corporation
FIXED IND 100UH 900MA 470MOHM SM
VLS6045EX-101M-H
ActiveTDK Corporation
FIXED IND 100UH 900MA 470MOHM SM
Description
General part information
VLS6045EX-101M-H

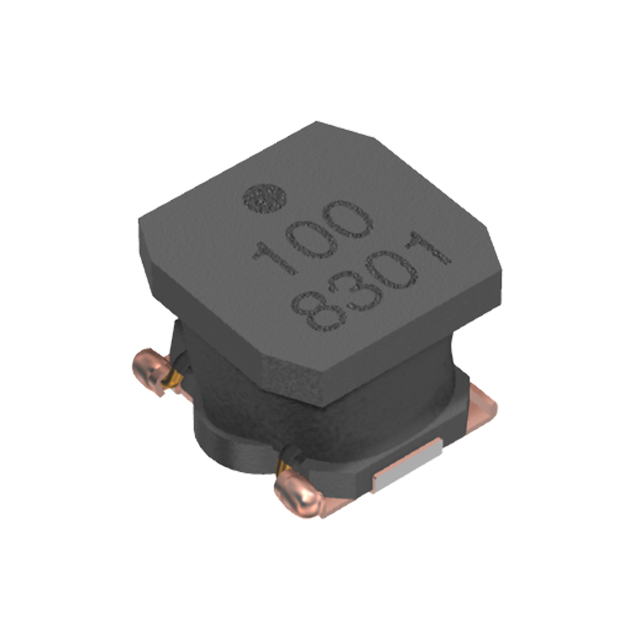

100 µH Shielded Drum Core, Wirewound Inductor 900 mA 470mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLS6045EX-101M-H |
|---|---|
| Current - Saturation (Isat) | 1.1 A |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 470 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.248 in |
| Size / Dimension Width | 0.236 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
