Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CCPLTR5060-X | CCPLTR Series |
|---|---|---|
| Color | Black | Black |
| Height | - | 87.88 - 117.09 mm |
| Height | - | 3.46 - 4.61 in |
| Height [z] | 140.97 mm | 128.02 - 140.97 mm |
| Height [z] | 5.55 in | 5.04 - 5.55 in |
| Length | 197.1 mm | 132.08 - 197.1 mm |
| Length | 7.76 in | 5.2 - 7.76 " |
| Length | - | 6.06 in |
| Type | Clamp, Cleat | Clamp, Cleat |
| Type Attributes | Adjustable | Adjustable |
| Width [x] | 3.07 in | 3.07 in |
| Width [x] | 77.98 mm | 77.98 mm |
CCPLTR Series
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, POLYMER, TREFOIL CONFIGURAT
| Part | Height [diameter] | Height [diameter] | Width [x] | Width [x] | Color | Type | Type Attributes | Length | Length [x] | Length | Height [z] | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp CCPLTR3139-X | 104.9 mm | 4.13 in | 3.07 in | 77.98 mm | Black | Clamp, Cleat | Adjustable | 153.92 mm | 6.06 in | |||
Panduit Corp CCPLTR2228-X | 87.88 mm | 3.46 in | 3.07 in | 77.98 mm | Black | Clamp, Cleat | Adjustable | 132.08 mm | 5.2 " | |||
Panduit Corp CCPLTR3745-X | 117.09 mm | 4.61 in | 3.07 in | 77.98 mm | Black | Clamp, Cleat | Adjustable | 166.12 mm | 6.54 in | |||
Panduit Corp CCPLTR4352-X | 3.07 in | 77.98 mm | Black | Clamp, Cleat | Adjustable | 180.09 mm | 7.09 in | 128.02 mm | 5.04 in | |||
Panduit Corp CCPLTR5060-X | 3.07 in | 77.98 mm | Black | Clamp, Cleat | Adjustable | 197.1 mm | 7.76 in | 140.97 mm | 5.55 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CCPLTR Series

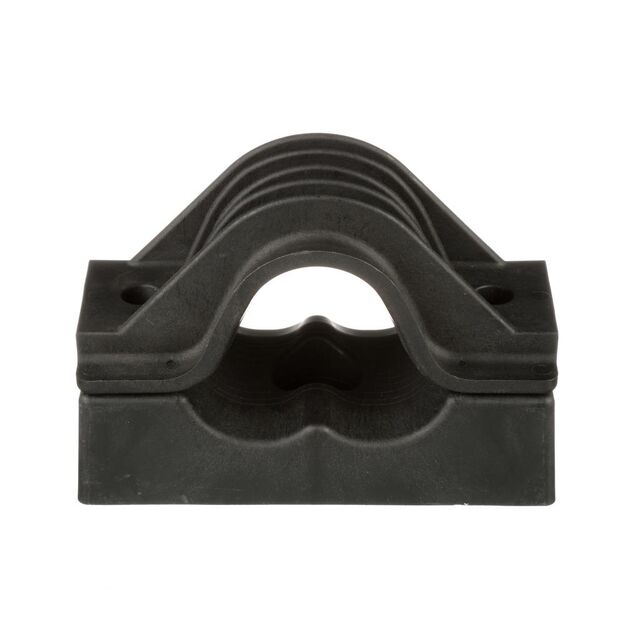

Cable Clamp, Cleat Black
Documents
Technical documentation and resources
