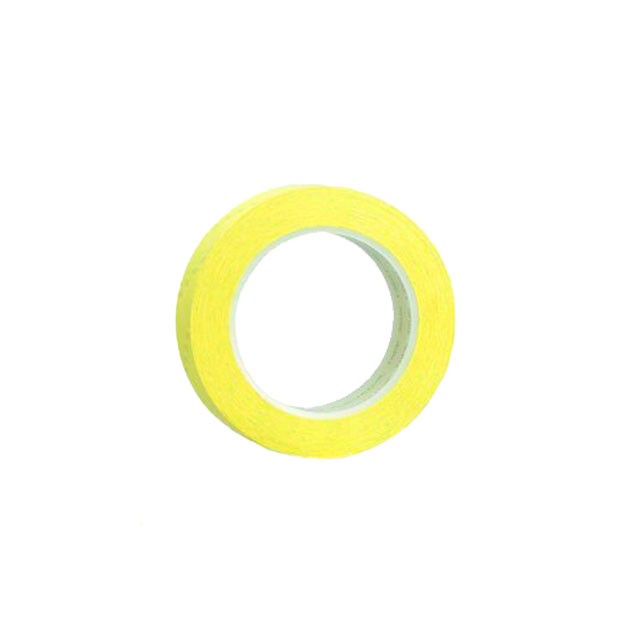

3M 1350F-2Y 1" X 72YD

Active

3M (TC)

TAPE ELECTRICAL YELLOW 1"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M 1350F-2Y 1" X 72YD

Active

3M (TC)

TAPE ELECTRICAL YELLOW 1"X72YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.59

Description

General part information

1350F Series

Electrical Tape Acrylic Adhesive Yellow 1.00" (25.40mm) X 216' (66.0m) 72 yds

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3M 1350F-2Y 1" X 72YD	1350F Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film
Color	Yellow	Yellow, White, Black
Length	66 m	66 m
Length	216 ft	216 ft
Length	72 yd	72 yd
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Tape Type	Electrical	Film, Electrical
Temperature Range	130 °C	130 °C
Temperature Range	266 °F	266 °F
Thickness	0.0035 "	0.0025 - 0.0035 "
Thickness	88.9 microns	2.5 - 88.9 mils
Thickness	0.089 mm	0.064 - 0.089 mm
Thickness - Adhesive	1 mils	1 - 1.5 mils
Thickness - Adhesive	0.025 mm	0.025 - 0.038 mm
Thickness - Adhesive	0.001 in	0.001 - 0.0015 in
Thickness - Backing, Carrier	0.002 "	0.001 - 0.002 "
Thickness - Backing, Carrier	0.051 mm	0.025 - 0.051 mm
Thickness - Backing, Carrier	2 mils	1 - 2 mils
Usage	-	High Temperature, Insulating
Width	-	0.47 - 11 "
Width	-	11.94 - 279.4 mm
Width	-	0.125 - 19.05 in
Width	-	0.13 - 41.28 in
Width	-	0.19 - 254 mm
Width	-	1 7/8", 1 1/2, 1 3/4
Width	-	1 5/8
Width	-	0.1875 in
Width	-	-
Width [x]	25.4 mm	18 - 304.8 mm
Width [x]	1 in	0.71 - 12 "

1350F Series

TAPE FILM YELLOW 4"X72YDS

...

Part	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Shelf Life Start	Color	Shelf Life	Width [x]	Width [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Backing, Carrier	Length	Length	Length	Width [y]	Width [y]	Width	Width	Width	Width
3M (TC) 3M 1350F-1Y 4" X 72YD	1.5 mils	0.0015 in	0.038 mm	Film	Date of Manufacture	Yellow	60 Months	4 "	101.6 mm	1 mils	0.025 mm	0.001 "	Acrylic	130 °C	266 °F	2.5 mils	0.064 mm	0.0025 "	Polyester Film	66 m	216 ft	72 yd
3M (TC) 1350F-1Y-2-72	1.5 mils	0.0015 in	0.038 mm	Film	Date of Manufacture	Yellow	60 Months			1 mils	0.025 mm	0.001 "	Acrylic	130 °C	266 °F	2.5 mils	0.064 mm	0.0025 "	Polyester Film	66 m	216 ft	72 yd	2 "	50.8 mm
3M (TC) 3M 1350F-1 4" X 72YD-YELLOW	1.5 mils	0.0015 in	0.038 mm	Film	Date of Manufacture	Yellow	60 Months	4 "	101.6 mm	1 mils	0.025 mm	0.001 "	Acrylic	130 °C	266 °F	2.5 mils	0.064 mm	0.0025 "	Polyester Film	66 m	216 ft	72 yd
3M (TC) 3M 1350F-2W 0.313" X 72YD	1 mils	0.001 in	0.025 mm	Electrical	Date of Manufacture	White	60 Months			2 mils	0.051 mm	0.002 "	Acrylic	130 °C	266 °F	88.9 microns	0.089 mm	0.0035 "	Polyester Film	66 m	216 ft	72 yd			0.3125 in	0.31 in	7.87 mm
3M (TC) 1350F-2Y-0.375-72	1 mils	0.001 in	0.025 mm	Electrical	Date of Manufacture	Yellow	60 Months			2 mils	0.051 mm	0.002 "	Acrylic	130 °C	266 °F	88.9 microns	0.089 mm	0.0035 "	Polyester Film	66 m	216 ft	72 yd			0.375 in	0.38 in	9.65 mm
3M (TC) 1350F-2W-0.25-72	1 mils	0.001 in	0.025 mm	Electrical	Date of Manufacture	White	60 Months			2 mils	0.051 mm	0.002 "	Acrylic	130 °C	266 °F	88.9 microns	0.089 mm	0.0035 "	Polyester Film	66 m	216 ft	72 yd			0.25 in	0.25 in	6.35 mm
3M (TC) 3M 1350F-1Y 1.875" X 72YD	1.5 mils	0.0015 in	0.038 mm	Film	Date of Manufacture	Yellow	60 Months			1 mils	0.025 mm	0.001 "	Acrylic	130 °C	266 °F	2.5 mils	0.064 mm	0.0025 "	Polyester Film	66 m	216 ft	72 yd				1.88 in	47.63 mm	1 7/8"
3M (TC) 3M 1350F-1 2.75" X 72YD-WHITE	1.5 mils	0.0015 in	0.038 mm	Film	Date of Manufacture	White	60 Months			1 mils	0.025 mm	0.001 "	Acrylic	130 °C	266 °F	2.5 mils	0.064 mm	0.0025 "	Polyester Film	66 m	216 ft	72 yd				2.75 in	69.85 mm
3M (TC) 3M 1350F-1W 2" X 72YD	1.5 mils	0.0015 in	0.038 mm	Film	Date of Manufacture	White	60 Months			1 mils	0.025 mm	0.001 "	Acrylic	130 °C	266 °F	2.5 mils	0.064 mm	0.0025 "	Polyester Film	66 m	216 ft	72 yd	2 "	50.8 mm
3M (TC) 1350F-1B-0.375-72(2)	1.5 mils	0.0015 in	0.038 mm	Film	Date of Manufacture	Black	60 Months			1 mils	0.025 mm	0.001 "	Acrylic	130 °C	266 °F	2.5 mils	0.064 mm	0.0025 "	Polyester Film	66 m	216 ft	72 yd			0.375 in	0.38 in	9.65 mm
