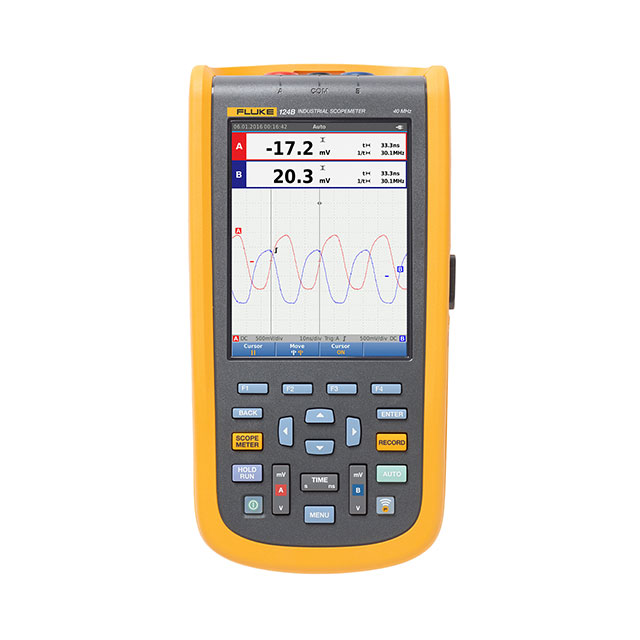

FLUKE-124B/NA
ActiveFluke Electronics
INDUSTRIAL SCOPEMETER 40MHZ
FLUKE-124B/NA
ActiveFluke Electronics
INDUSTRIAL SCOPEMETER 40MHZ
Description
General part information
FLUKE-124B/NA
40 MHz Handheld Oscilloscopes USB Interface LCD - Color Display 2 Channel CAT III 750V, CAT IV 600V Record, Save, Trend, DMM
Technical Specifications
Parameters and characteristics for this part
| Specification | FLUKE-124B/NA |
|---|---|
| Analog Channels | 2 |
| Bandwidth | 40 MHz |
| Channel Types | Analog |
| Channels (Count) | 2 |
| Display Type | LCD - Color |
| Function | DMM, Trend, Record, Save |
| Includes | Battery Charger/Adapter, Test Leads, Hook Clips, Adapter |
| Input Impedance (Capacitance) | 20 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB |
| Memory Size | 1.024 kpts |
| Probe Attenuation | 10 ratio |
| Probe Count | 1 |
| Probe Type | Passive |
| Rise Time (Typ) | 8.75 ns |
| Sampling Rate (Per Second) | 400 kHz |
| Type | Handheld |
| Voltage - Input (Max) (CAT III) | 750 V |
| Voltage - Input (Max) (CAT IV) | 600 V |
| Voltage - Input (Max) Category | CAT IV, CAT III |
| Voltage - Input (Max) Rating | CAT IV, CAT III |
| Voltage - Supply | 10.8VDC Battery, 22VDC Adapter |
| Voltage - Supply | 10.8 VDC, 22 VDC |
| Voltage - Supply Type | Adapter, Battery |
