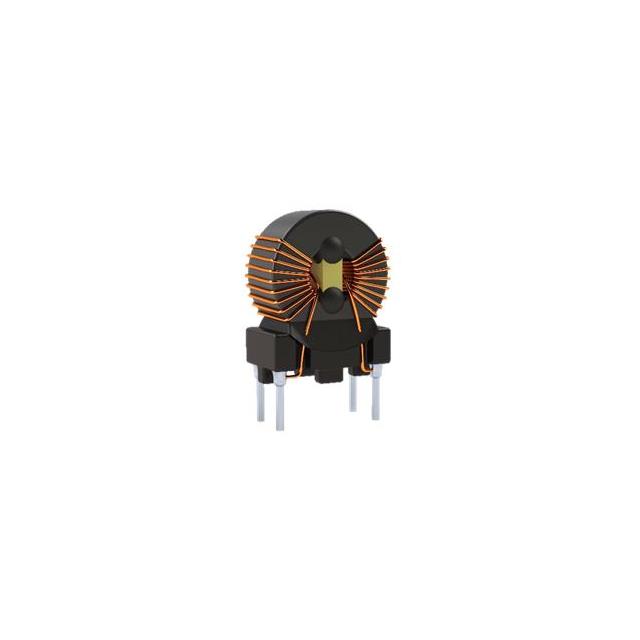

C201371A-102U
ActiveITG Electronics, Inc.
NANOCRYSTAL CMC 1.0MH 2.5A MAX.
C201371A-102U
ActiveITG Electronics, Inc.
NANOCRYSTAL CMC 1.0MH 2.5A MAX.
Description
General part information
C201371A-102U
1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2.5A DCR 50mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | C201371A-102U |
|---|---|
| Current Rating (Max) | 2.5 A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.63 in |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.551 in |
| Size / Dimension Width | 0.295 in |
| Voltage Rating - AC | 250 V |
