4291-5PG-3ES
ActiveConxall/Switchcraft

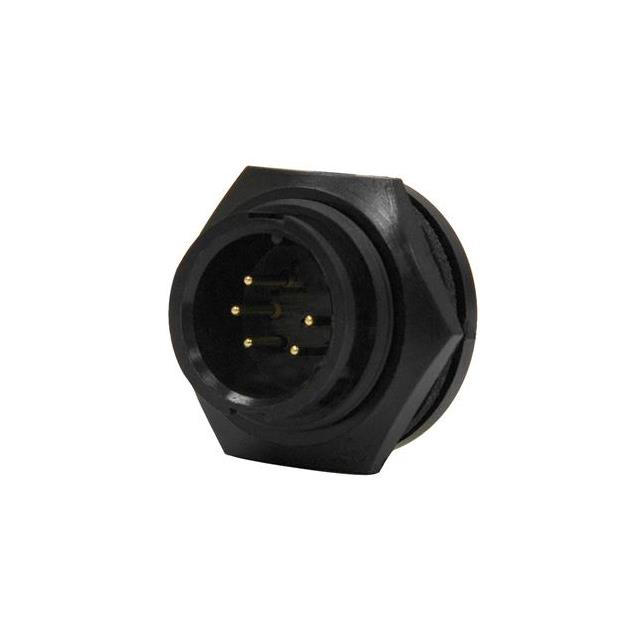

CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4291-5PG-3ES
ActiveConxall/Switchcraft
CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4291-5PG-3ES | 4291-5P Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 600 V | 600 V |
4291-5P Series
CONN RCPT MALE 5POS GOLD SOLDER
| Part | Current Rating (Amps) | Mounting Feature | Termination | Contact Finish - Mating | Fastening Type | Orientation | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Voltage Rating | Connector Type | Color | Contact Material | Ingress Protection | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 4291-5PG-300 | 5.6 A | Bulkhead - Front Side Nut | Solder | Gold | Bayonet Lock | Keyed | Panel Mount, Through Hole | -40 °C | 115 °C | Unshielded | 600 V | Male Pins, Receptacle | Black | Brass | Weathertight | Plastic |
Conxall/Switchcraft 4291-5PG-3ES | 5.6 A | Bulkhead - Front Side Nut | Solder | Gold | Bayonet Lock | Keyed | Panel Mount, Through Hole | -40 °C | 115 °C | Unshielded | 600 V | Male Pins, Receptacle | Black | Brass | Weathertight | Plastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.44 | |
Description
General part information
4291-5P Series
5 Position Circular Connector Receptacle, Male Pins Solder
