Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMMDB3TG | TMMDB3 Series |
|---|---|---|
| Current - Breakover | - | 15 µA |
| Current - Peak Output | - | 2 A |
| null | - | |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |

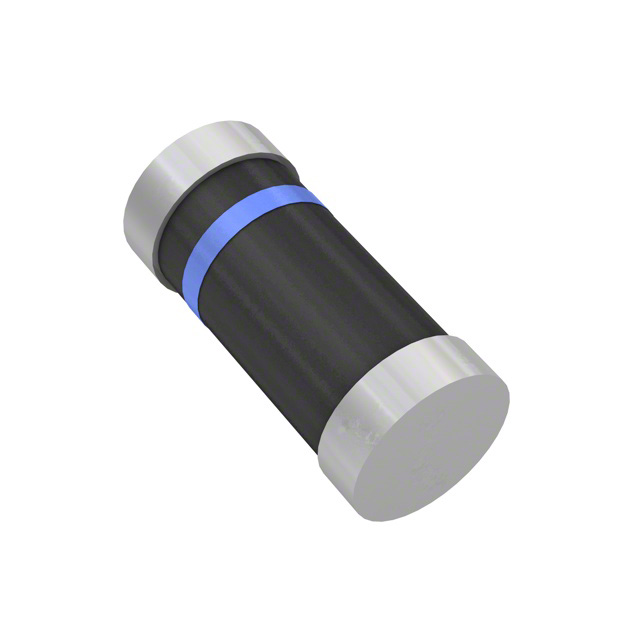

| Package / Case | - | DO-213AA |
| Supplier Device Package | - | Mini MELF |
| Voltage - Breakover | - | 34 V |
| Voltage - Breakover | - | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.49 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 2500 | $ 0.11 | ||
| 5000 | $ 0.10 | |||
| 7500 | $ 0.09 | |||
| 12500 | $ 0.09 | |||
| 17500 | $ 0.09 | |||
| 25000 | $ 0.08 | |||
| 62500 | $ 0.07 | |||
| 125000 | $ 0.07 | |||
TMMDB3 Series
DIAC
| Part | Current - Breakover | Operating Temperature [Min] | Operating Temperature [Max] | Current - Peak Output | Package / Case | Supplier Device Package | Voltage - Breakover [Max] | Voltage - Breakover [Min] |
|---|---|---|---|---|---|---|---|---|
STMicroelectronics TMMDB3 | ||||||||
STMicroelectronics TMMDB3 | ||||||||
STMicroelectronics TMMDB3 | ||||||||
STMicroelectronics TMMDB3TG | ||||||||
STMicroelectronics TMMDB3TG | 15 µA | -40 °C | 125 ¯C | 2 A | DO-213AA | Mini MELF | 34 V | 30 V |
Description
General part information
TMMDB3 Series
Functioning as a trigger diode with a fixed voltage reference, the TMMDB3 can be used in conjunction with Triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.
