Description
General part information

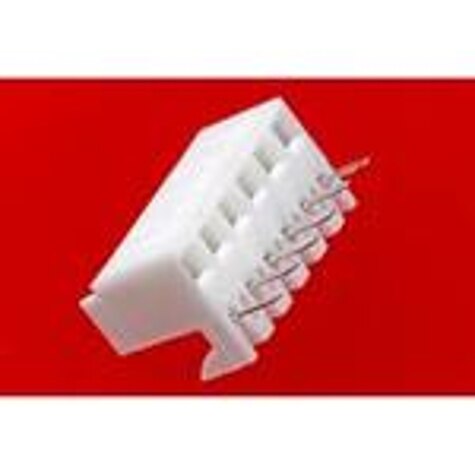

0022142084
HEADERS & WIRE HOUSINGS KK 100 PCB ASSY BTM 08 CKT TIN
Technical Specifications
Parameters and characteristics for this part
| Specification | 0022142084 |
|---|---|
| Connector Type | Bottom Entry, Receptacle |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 100 µin |
| Contact Length - Post | 0.132 in |
| Contact Type | Female, Cat Ear |
| Current Rating | 2.5 A |
| Fastening Type | Push-Pull |
| Features | Board Hooks |
| Insulation Color | White |
| Insulation Height | 0.311 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.1 in |
| Style | Board, Board or Cable |
| Termination | Solder |
| Voltage Rating | 250 V |
