D1CPC0306RR002FF-T50
ActiveThin Film Technology Corp.
RES 0.002 OHM 1% 1/3W 0306
D1CPC0306RR002FF-T50
ActiveThin Film Technology Corp.
RES 0.002 OHM 1% 1/3W 0306
Description
General part information
D1CPC0306RR002FF-T50

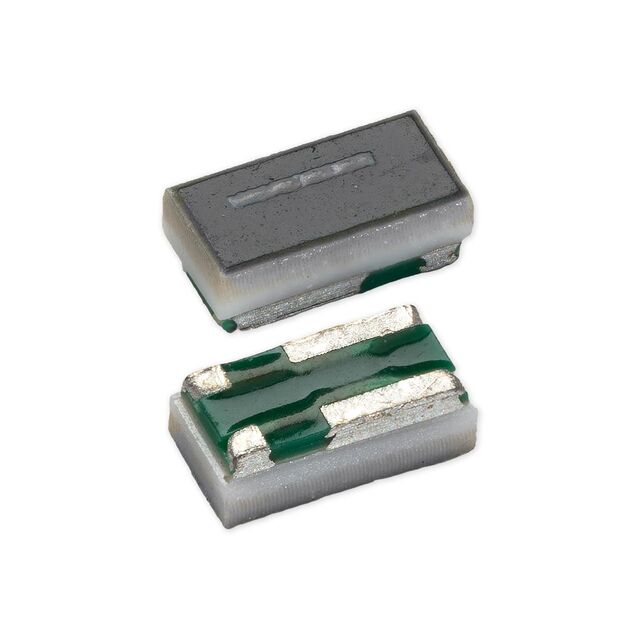

2 mOhms ±1% 0.333W, 1/3W Chip Resistor Wide 0603 (1608 Metric), 0306 Anti-Sulfur, Current Sense Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | D1CPC0306RR002FF-T50 |
|---|---|
| Composition | Metal Foil |
| Features | Current Sense, Anti-Sulfur |
| Height - Seated (Max) | 0.026 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Wide 0603 (1608 Metric), 0306 |
| Package Name | 0306 |
| Power (Watts) | 0.333 W |
| Power (Watts) Options | 1/3W |
| Resistance | 2 mOhms |
| Size / Dimension Length | 0.031 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
