400434

Obsolete

Bergquist

TOUCH SCREEN RESISTIVE 7.02"

Search across all available documentation for this part.

Obsolete

Bergquist

TOUCH SCREEN RESISTIVE 7.02"

Technical Specifications

Parameters and characteristics commom to parts in this series

TOUCH SCREEN RESISTIVE 10.4"

Part	Width [x]	Width	Height [z]	Height [z]	Length	Length	Type	Diagonal Screen Size	Diagonal Screen Size	Interface	Length [x]	Length [x]	Width [x]	Width [y]	Width [y]
Bergquist 400401	0.07 in	1.85 mm	6.61 in	167.83 mm	8.66 in	219.9 mm	Resistive	10.4 in	264.16 mm	5-Wire
Bergquist 400403	0.07 in	1.85 mm	7.54 in	191.4 mm			Resistive	12.1 in	307.34 mm	5-Wire	252.87 mm	9.96 in
Bergquist 400445			9.45 in	240 mm			Capacitive	15.1 in	382.8 mm		314 mm	12.36 "
Bergquist 400494	0.08 "		6.54 "	166.2 mm			Resistive	12.1 in	307.34 mm	5-Wire			2.2 mm
Bergquist 400434			3.54 in	90 mm			Resistive	7.02 in	178.31 mm	4-Wire	157 mm	6.18 "		1.02 mm	0.04 in
Bergquist 400426	0.06 in		3.7 in	93.85 mm			Resistive	5.72 in	145.36 mm	4-Wire	122 mm	4.8 in	1.4 mm
Bergquist 400437	0.03 in		2.24 in	56.9 mm	3.86 "	98.1 mm	Resistive	4.36 in	110.68 mm	4-Wire			0.76 mm
Bergquist 400427			3.98 in	101 mm			Resistive			4-Wire	133 mm	5.24 "		1.02 mm	0.04 in
Bergquist 400430			7.4 "	188 mm	9.84 "	0.25 m	Resistive	12.1 in	307.34 mm					2.1 mm	0.08 in
Bergquist 400432	0.12 in	3.1 mm	9.14 in	232.1 mm			Resistive	15 "	380 mm		308.2 mm	12.13 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

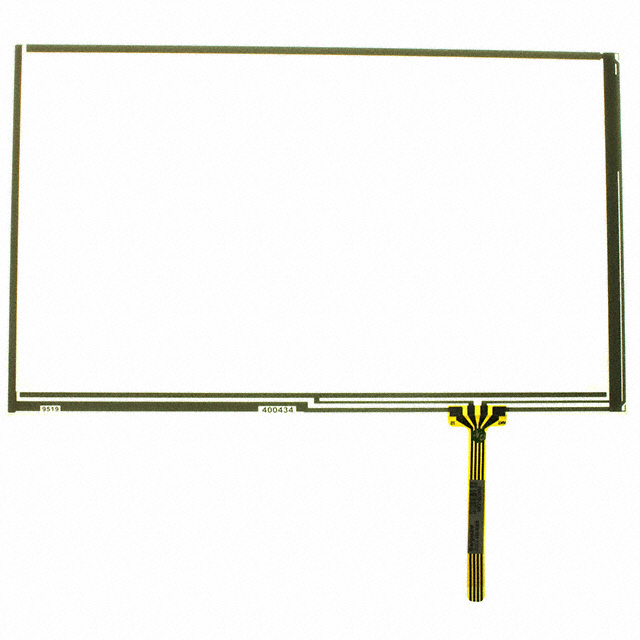

Resistive Touch Screen Overlay 7.02" (178.31mm) 4-Wire

Technical documentation and resources
