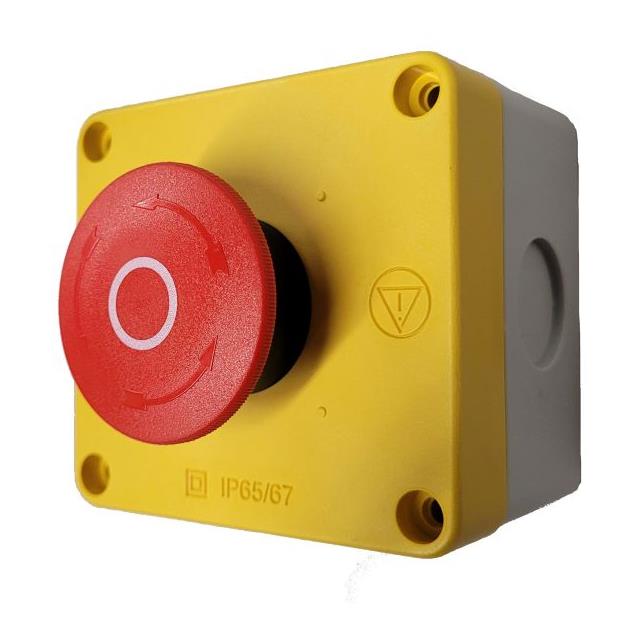

BG10P34-11
ActiveBenedict GmbH
ENCL E/STOP 1NO+1NC TWIST TO REL
BG10P34-11
ActiveBenedict GmbH
ENCL E/STOP 1NO+1NC TWIST TO REL
Description
General part information
BG10P34-11
Pushbutton Switch DPST-NO/NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BG10P34-11 |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating | 10 A |
| Features | Control Box Enclosure |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -40 °C |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 600 VAC |
