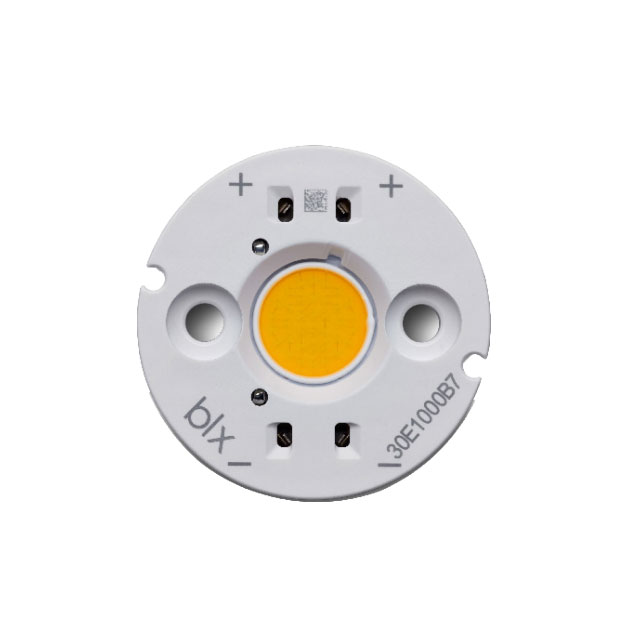

Specification	BXRC-35E1000-C-83-SE

CCT (K)	3500 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	80
Current - Max	1 A
Current - Test	300 mA
Height	3.6 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	10 mm
Lumens/Watt	177 lm/W
Luminous Flux (Typical)	1633 lm
Size / Dimension Diameter	30.8 mm
Temperature - Test	25 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	30.7 V

BXRC-35 Series

...

Part	Viewing Angle	Type	Current - Test	Height	Configuration	Voltage - Forward (Vf) (Typ)	Color	Temperature - Test	Features	Lens Type	Size / Dimension Diameter	Light Emitting Surface (LES) Diameter	CCT (K)	CCT Description	CRI (Color Rendering Index)	Luminous Flux (Typical)	Current - Max	Lumens/Watt
BRIDGELUX BXRC-35G1000-D-73	120 °	Chip On Board (COB)	350 mA	1.9 mm	Starboard	26 V	Warm White	25 °C	With Connector	Flat	20 mm	9.9 mm	3500 K	3-Step MacAdam Ellipse	90	1209 lm	700 mA	133 lm/W
BRIDGELUX BXRC-35E4000-D-73-SE	120 °	Chip On Board (COB)	1.05 A	3.6 mm	Round	28.3 V	Warm White	85 °C		Flat	36.2 mm	18.4 mm	3500 K	3-Step MacAdam Ellipse	80	4303 lm	2.1 A	145 lm/W
BRIDGELUX BXRC-35E4000-F-03	120 °	Chip On Board (COB)	1.05 A	1.9 mm	Round	29.5 V	Warm White	25 °C	With Connector	Flat	36.2 mm	18.4 mm	3500 K	3-Step MacAdam Ellipse	80	3920 lm	2.1 A	127 lm/W
BRIDGELUX BXRC-35A1001-D-73-SE	120 °	Chip On Board (COB)	350 mA	3.6 mm	Round	25.3 V	Warm White	85 °C		Flat	30.8 mm	9.9 mm	3500 K	3-Step MacAdam Ellipse	93	996 lm	700 mA	112 lm/W
BRIDGELUX BXRC-35E10K0-L-23	120 °	Chip On Board (COB)	2.1 A	1.9 mm	Round	38 V	Warm White	25 °C	With Connector	Flat	49.2 mm	29.2 mm	3500 K	3-Step MacAdam Ellipse	80	11399 lm	4.2 A	143 lm/W
BRIDGELUX BXRC-35G4000-B-73		Chip On Board (COB)	900 mA	1.9 mm	Round	33.9 V 34.1 V	Warm White	85 °C	With Connector	Flat	36.2 mm	18.4 mm	3500 K	3-Step MacAdam Ellipse	90	3744 lm 3861 lm	1.8 A	122 lm/W 127 lm/W
BRIDGELUX BXRC-35E4000-F-23	120 °	Chip On Board (COB)	1.05 A	1.9 mm	Round	29.5 V	Warm White	25 °C	With Connector	Flat	36.2 mm	18.4 mm	3500 K	3-Step MacAdam Ellipse	80	4289 lm	2.1 A	138 lm/W
BRIDGELUX BXRC-35A4001-B-73	120 °	Chip On Board (COB)	900 mA	1.9 mm	Round	34.1 V	Warm White	85 °C	With Connector	Flat	36.2 mm	18.4 mm	3500 K	3-Step MacAdam Ellipse	93	3623 lm	1.8 A	118 lm/W
BRIDGELUX BXRC-35G10K0-C-73	120 °	Chip On Board (COB)	1.71 A	1.9 mm	Round	69.4 V	Warm White	25 °C		Flat	49.2 mm	29.2 mm	3500 K	3-Step MacAdam Ellipse	90	16257 lm	3.42 A	137 lm/W
BRIDGELUX BXRC-35E1000-C-72	120 °	Chip On Board (COB)	360 mA	1.9 mm	Starboard	34.8 V	Warm White	25 °C	With Connector	Flat	20 mm	9.9 mm	3500 K	2-Step MacAdam Ellipse	80	2000 lm	720 mA	160 lm/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BXRC-35E1000-C-83-SE | Datasheet
