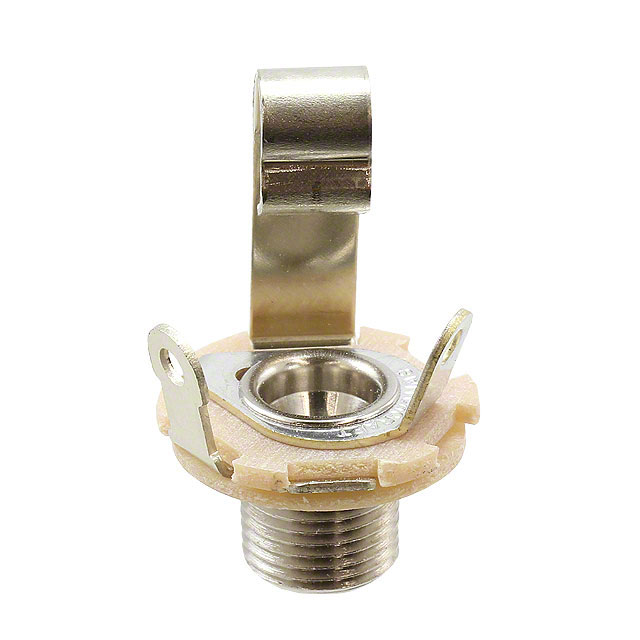

S11
ActiveSWITCHCRAFT/CONXALL
.210" ID OPEN FRAME JACK, 2 CONDUCTOR
S11
ActiveSWITCHCRAFT/CONXALL
.210" ID OPEN FRAME JACK, 2 CONDUCTOR
Description
General part information
S11
5.23mm (0.206") Phone Jack Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | S11 |
|---|---|
| Actual Diameter | 0.21 in |
| Body Color | Silver |
| Body Material | Copper Alloy |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Current Rating | 1 A |
| Features | Mounting Hardware, Thread Lock |
| Gender | Female |
| Includes | Washer, Connector, Nut |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter | 5.23 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 25 VAC |
